DIRECTION 5936427, REV. 1 LOGIQ TOTUS Basic Service Manual
8 - 176 Section 8-10 - Replacing Back End Parts
8-10-4-3 Installation Procedure
1.) Parts to be installed in reverse order of removal
2.) Perform “Functional Checks after FRU replacement (Debrief Guideline)” as described in Section 8-
12 on page 8-223

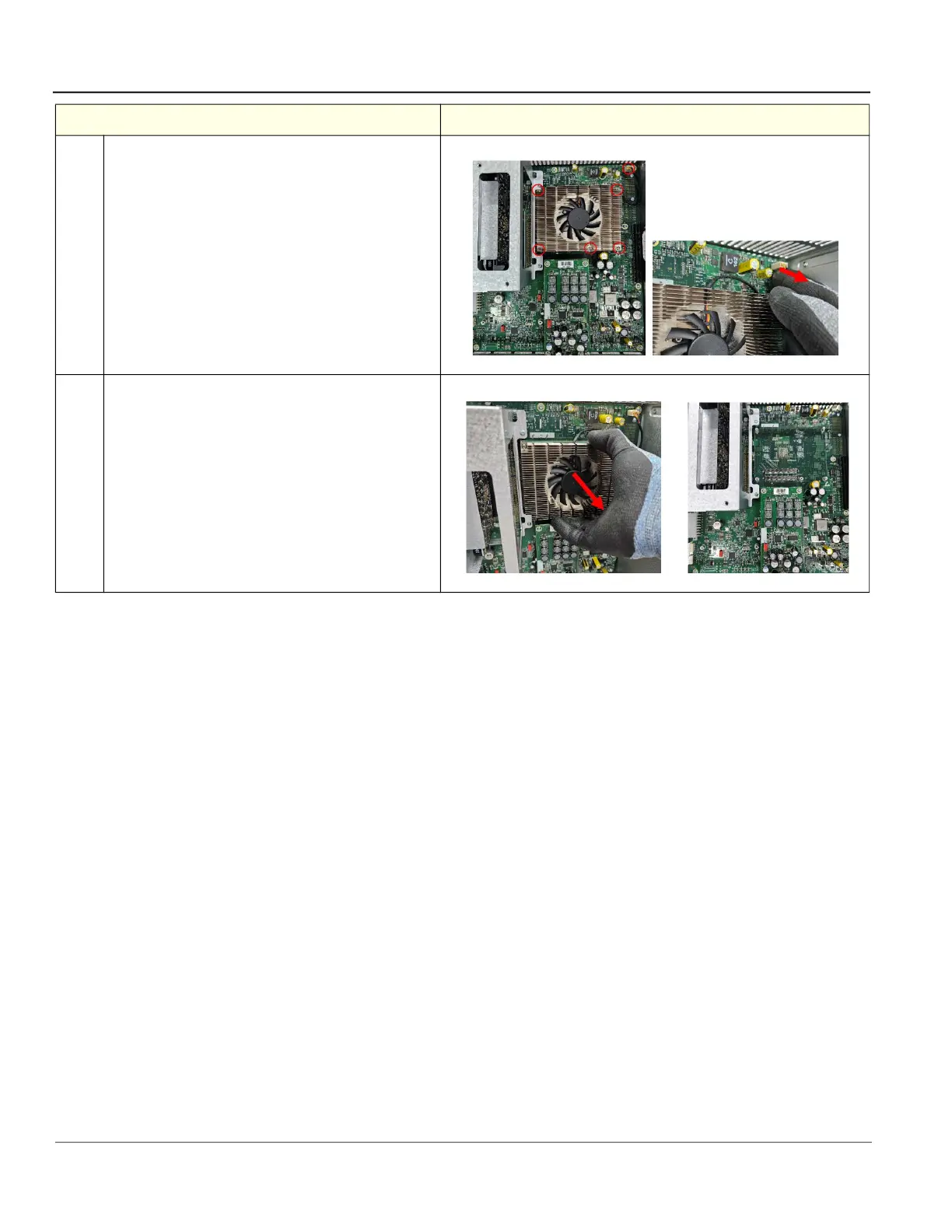

4. Unscrew 5 screws to remove the SOM and Pull the
SOM Fan Connector to remove from the console.
5. Remove the SOM from the UBE-T.
Steps Corresponding Graphic
To Next Page
