GE HealthCare CONFIDENTIAL
DIRECTION 5936427, REV. 1 LOGIQ TOTUS Basic Service Manual
8 - 190 Section 8-11 - Replacing Options
8-11-7 Replacement of the T2 Drawer Assy
This table includes information specific to these instructions. For more information 8-2-6 "Tools needed
for servicing the LOGIQ Totus" on page 8-5 /8-2-7 "PPE Required During Service" on page 8-6
8-11-7-1 Preparations
1.) Remove the T2 Side Cover L Assy as described in 8-8-7 "Replacement of the T2 Side Cover L
Assy" on page 8-135
8-11-7-2 Removal Procedure
8-11-7-3 Installation Procedure
1.) Parts to be installed in reverse order of removal
2.) Perform “Functional Checks after FRU replacement (Debrief Guideline)” as described in Section 8-
12 on page 8-223
Table 8-102 Manpower, Time, Tools, and PPE
Manpower Time Tools PPE
One person Approximately 5 minutes Philips Screwdriver
Cut resistant gloves
Knee Pad
Step Corresponding graphic
1.

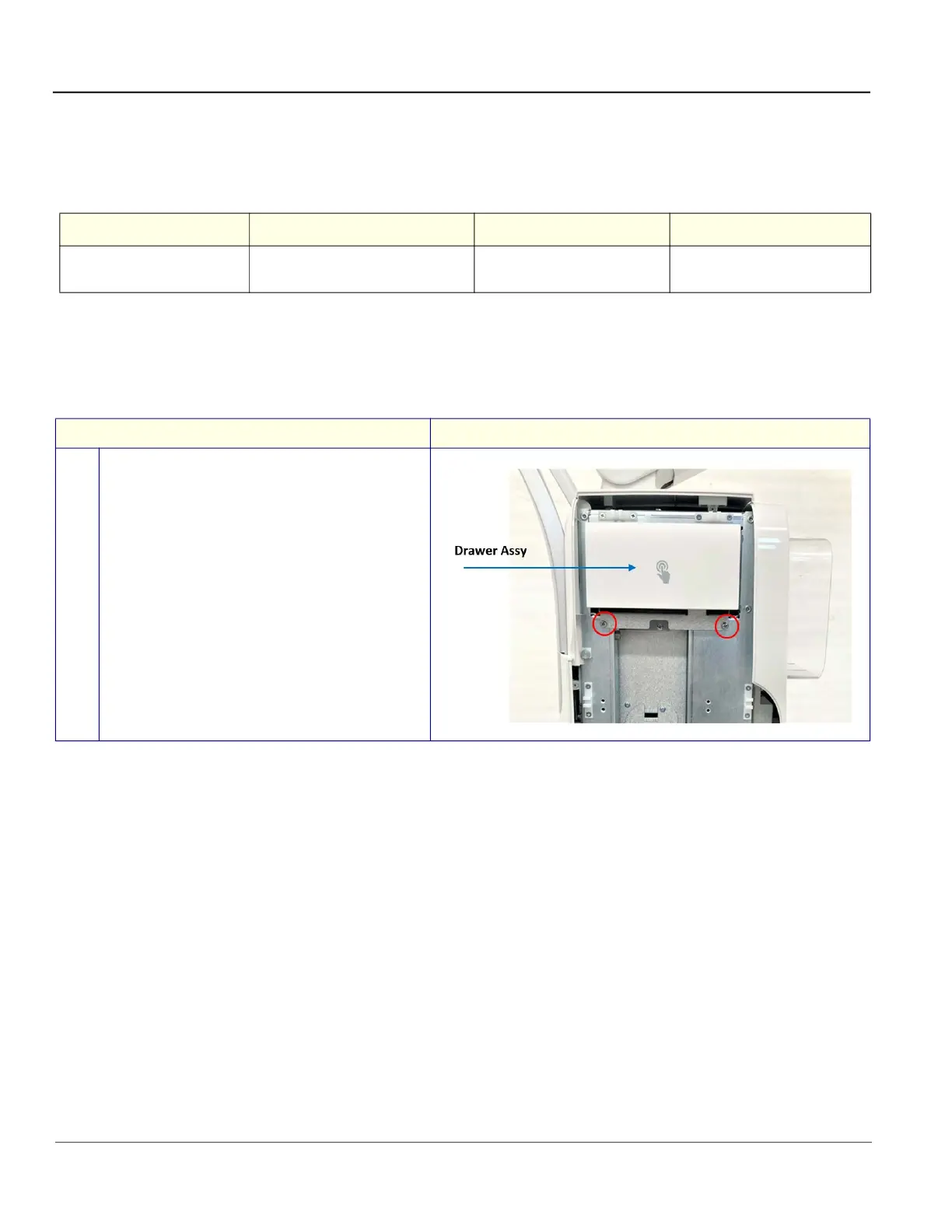

Unscrew 2 screws to remove the T2 Drawer Assy
from the console.
To Next Page
