DIRECTION 5936427, REV. 1 LOGIQ TOTUS Basic Service Manual
Section 8-11 - Replacing Options 8 - 207
8-11-17-2 Removal Procedure
8-11-17-3 Installation Procedure
1.) Parts to be installed in reverse order of removal
2.) Perform “Functional Checks after FRU replacement (Debrief Guideline)” as described in Section 8-
12 on page 8-223

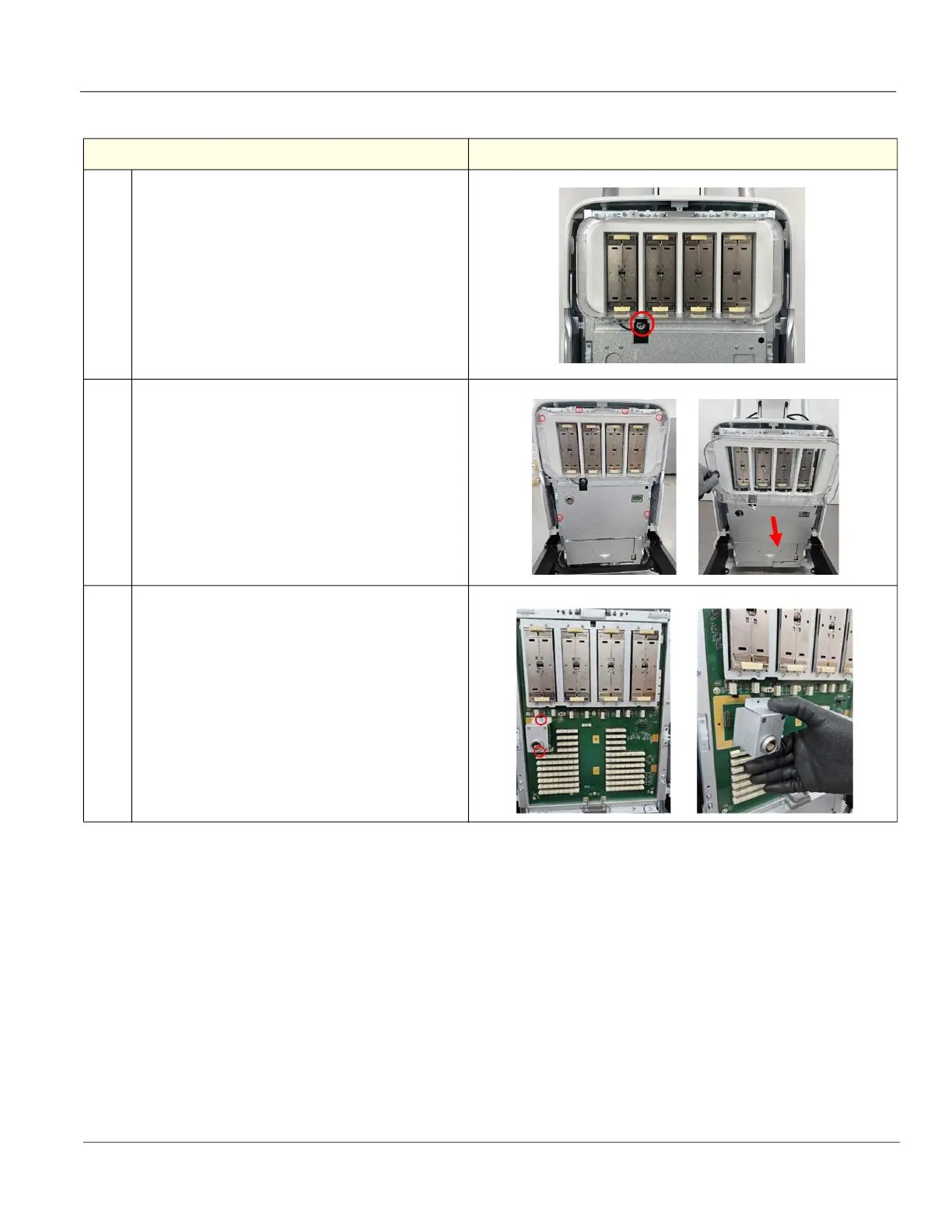

Steps Corresponding Graphic
1. Push the button of Unity Protector Assy’s connector
and disconnect the Unity Protector Assy’s Connector
from the console.
2. Unscrew 6 screws to remove the Unity UCO-T Front
Cover Brkt..
3. Unscrew 2 screws to remove the U-DCWD Set from
the console.
To Next Page
