DIRECTION 5936427, REV. 1 LOGIQ TOTUS Basic Service Manual
Section 8-11 - Replacing Options 8 - 209
8-11-18-2 Removal Procedure
8-11-18-3 Installation Procedure
1.) Parts to be installed in reverse order of removal
2.) Perform “Functional Checks after FRU replacement (Debrief Guideline)” as described in Section 8-
12 on page 8-223

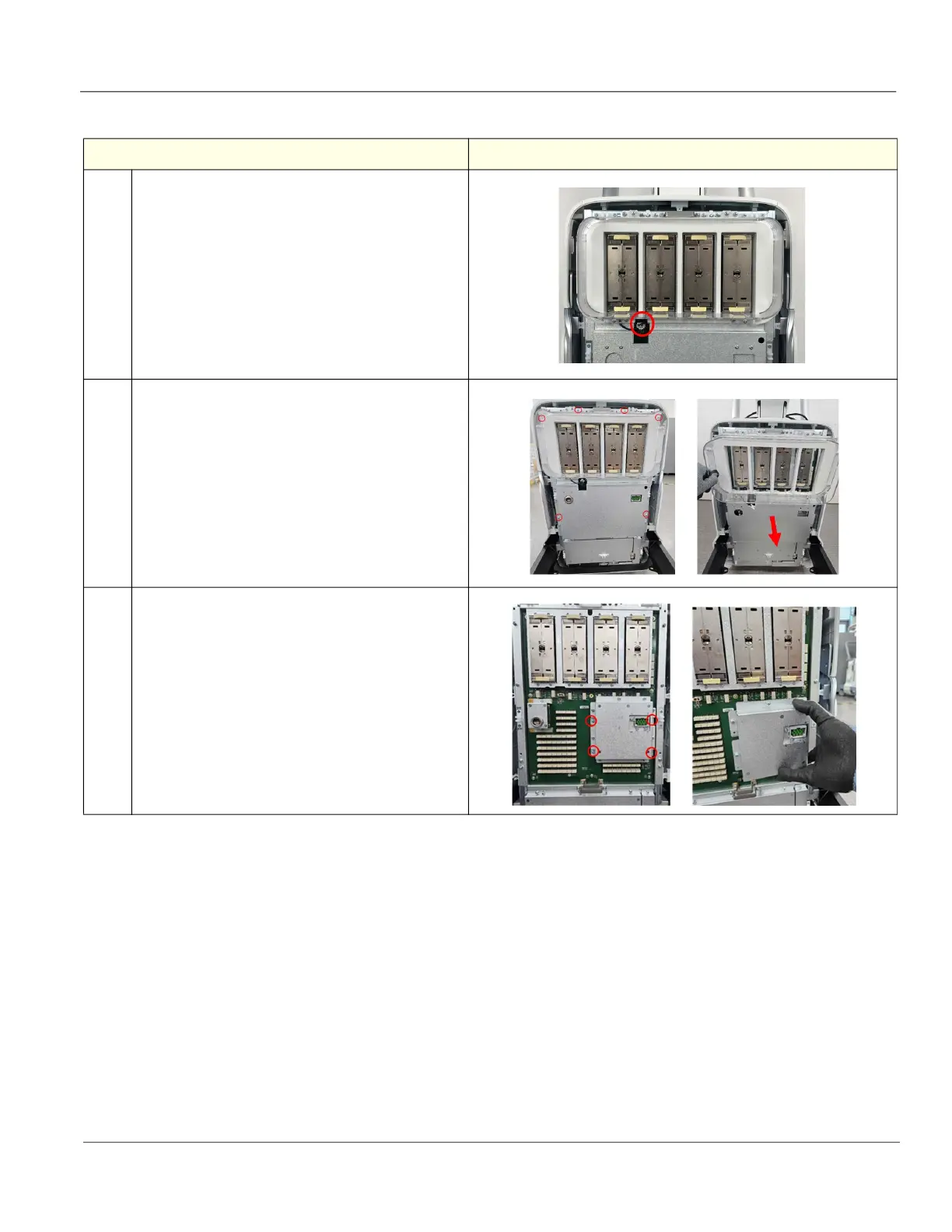

Steps Corresponding Graphic
1. Push the button of Unity Protector Assy’s connector
and disconnect the Unity Protector Assy’s Connector
the console.
2. Unscrew 6 screws to remove the Unity UCO-T Front
Cover Brkt.
3. Unscrew 4 screws to remove the UECG Assy.
