2FSK Measurement
Description
2FSK is a binary FSK (frequency shift keying)
form of modulation. 2FSK is commonly used to
transmit data where an FSK modulated signal
is composed of two different frequencies, one
frequency represents the “1” data and the other
frequency represents the “0” data.
For 2FSK measurement 2 traces will be created,
one trace will show the 2FSK spectrum (trace 1,
yellow) and the other trace (trace 2, purple) will
show a MAX HOLD trace type with peak
markers at the FSK carrier and hop frequencies.
Measurement
items
Peak 1, Peak 2:
frequency, amplitude
Frequency Deviation:
hertz
Carrier Offset:
frequency
Carrier Freq Offset:
frequency
Peak Threshold:
dBm
Max Hold:
dBm

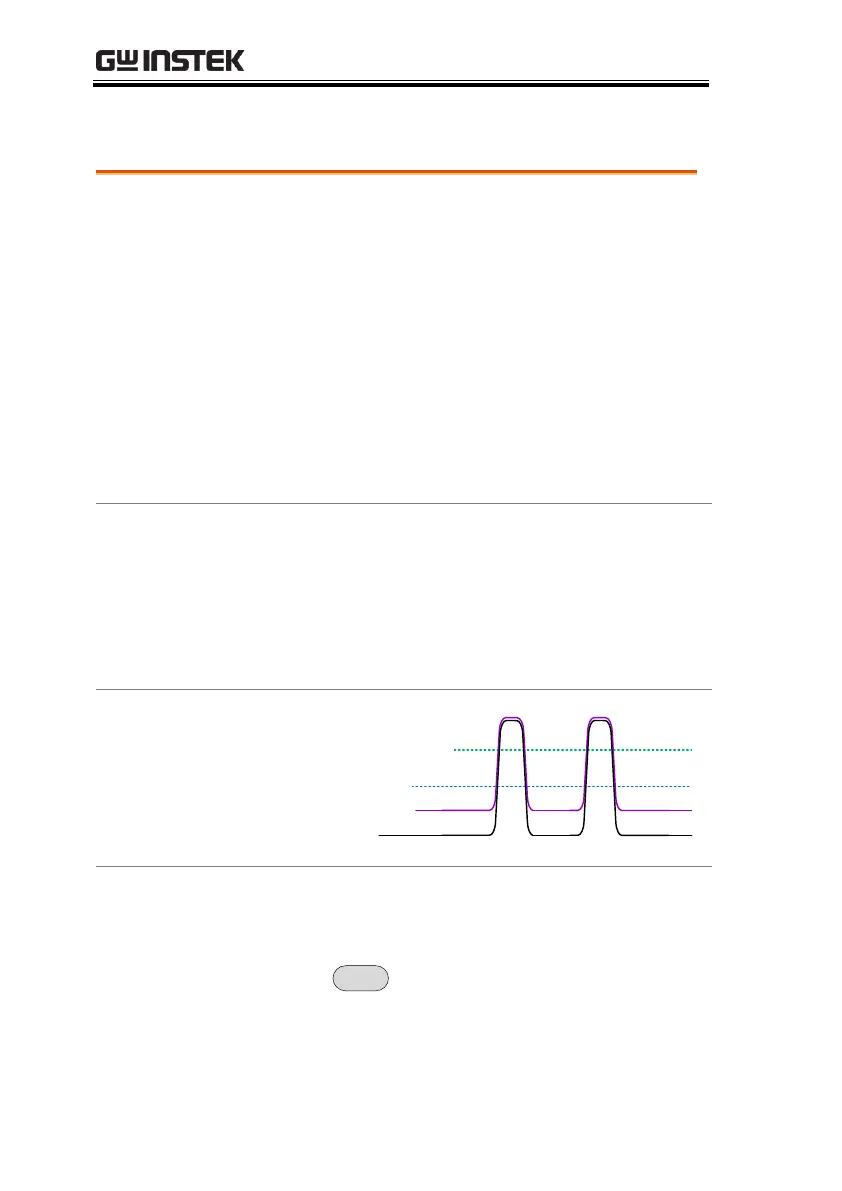

Example
Freq. 1
Freq. 2
Peak threshold limit
Max Hold limit
2FSK trace
Max Hold trace
Operation
1. Set the frequency span to cover the 2FSK carrier
and hop frequency. See page 41 for details.
2. Press
Measure
> 2FSK[F3]>2FSK[F1] and turn
2FSK on.
 Any other measurement mode will automatically be
disabled.
