31

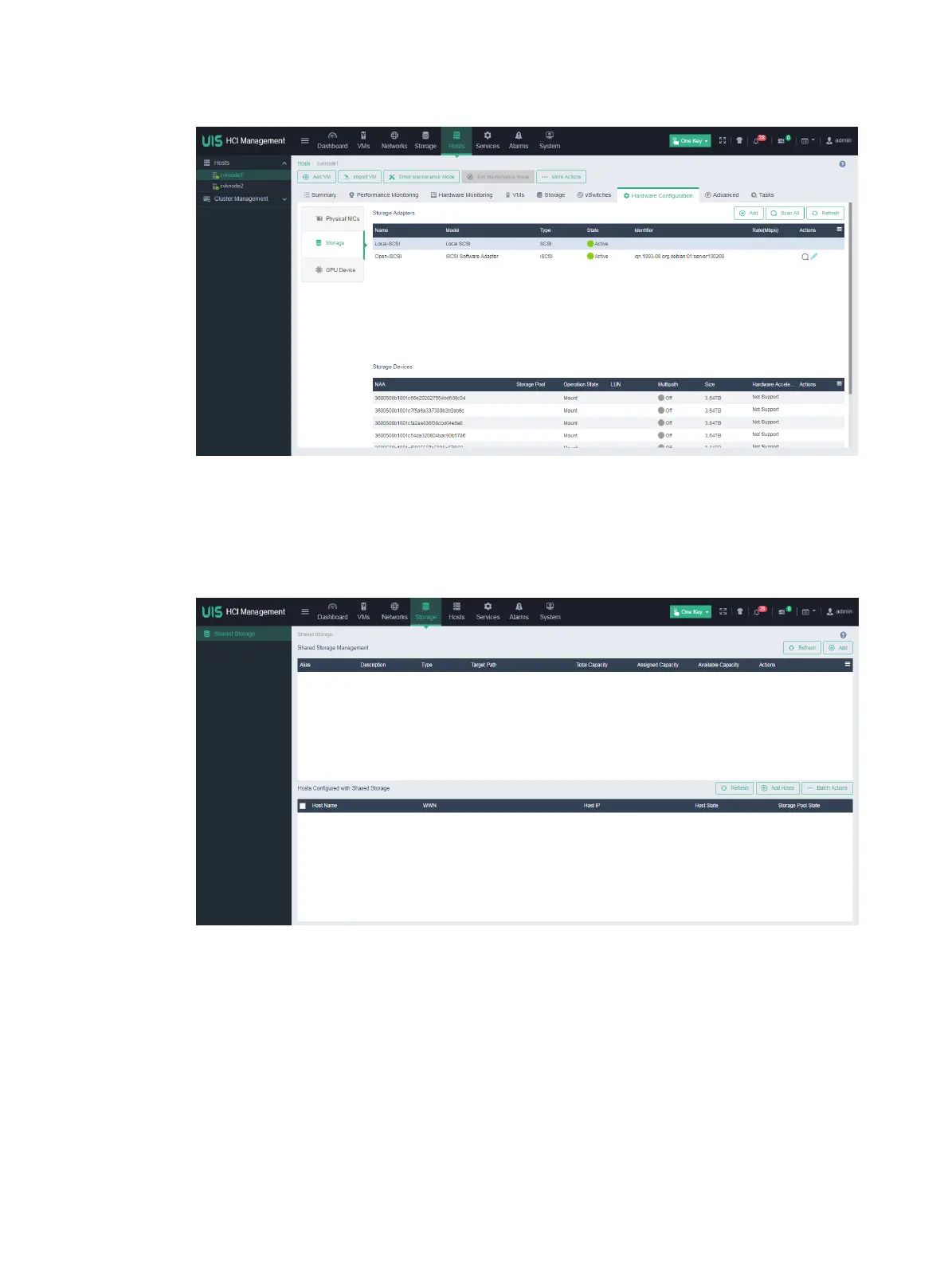

Figure 31 Obtaining the host IQN
3. Configure network-shared storage settings on the iSCSI storage device, including host, LUN,
and LUN-host mapping settings.
4. In UIS Manager, click Storage on the top navigation bar, and select Shared Storage from the
navigation pane.
Figure 32 Configuring shared storage
5. Click Add.
6. Configure the following parameters:
{ Type—To access an IP SAN storage device, select iSCSI Shared Directory. To access an
FC SAN storage device, select FC Shared Directory.
{ Target Path—Select a point to mount the shared file system in the client.
