30

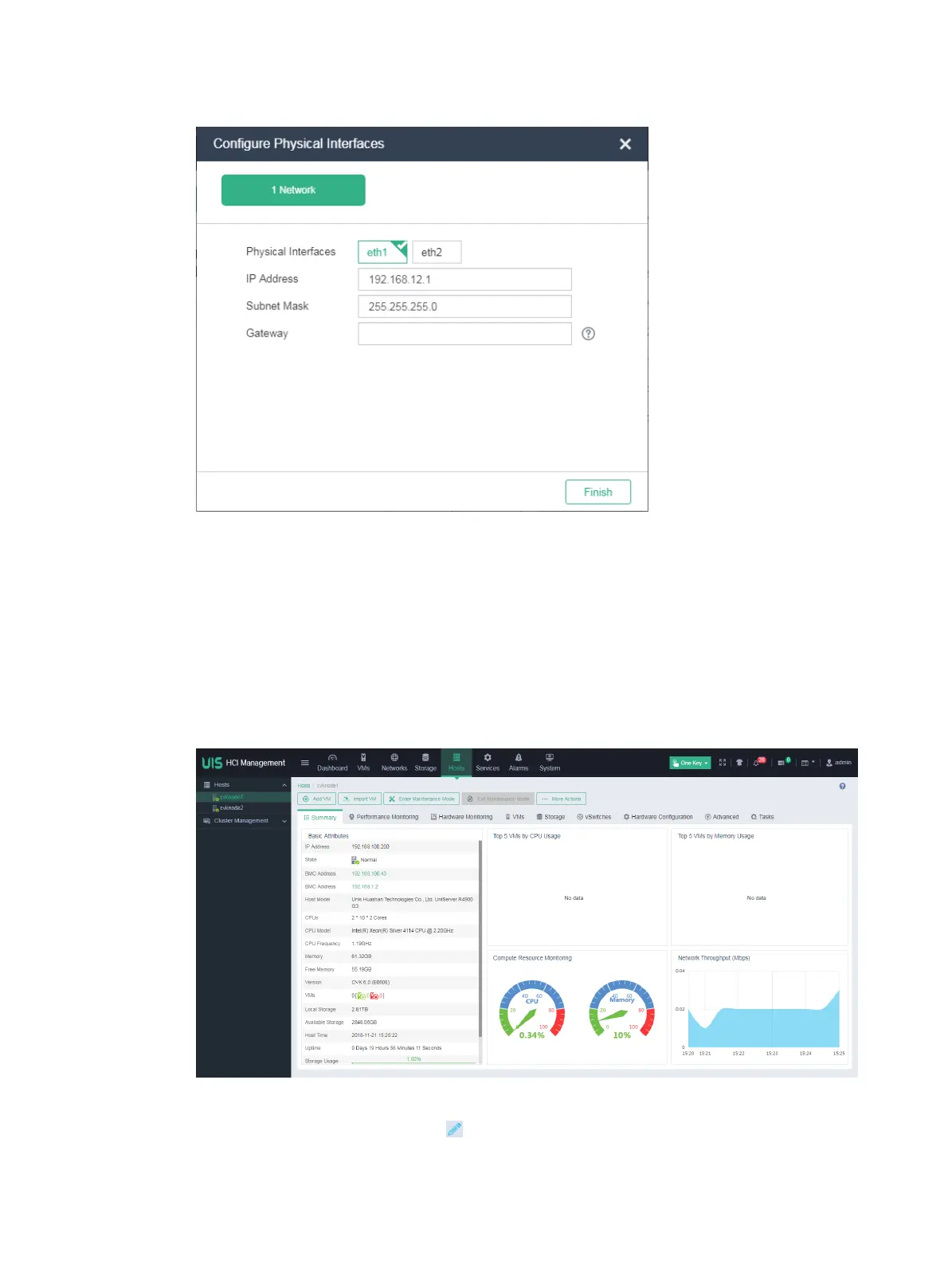

Figure 29 Configuring physical interfaces
7. Click Finish when the page as shown in Figure 28 appears.
Configuring network-shared storage
Make sure the storage device is reachable from the host.
To configure network-shared IP SAN storage, start from step 1. To configure network-shared FC
SAN storage, start from step 4.
To configure network shared storage:
1. On the top navigation bar, click Hosts, and then select a host from the navigation pane.
Figure 30 Viewing detailed host information
2. Click the Hardware Configuration tab and then select Storage to view the IQN for the host. To
change the IQN, click the Edit icon .
To Next Page
Loading...
