67

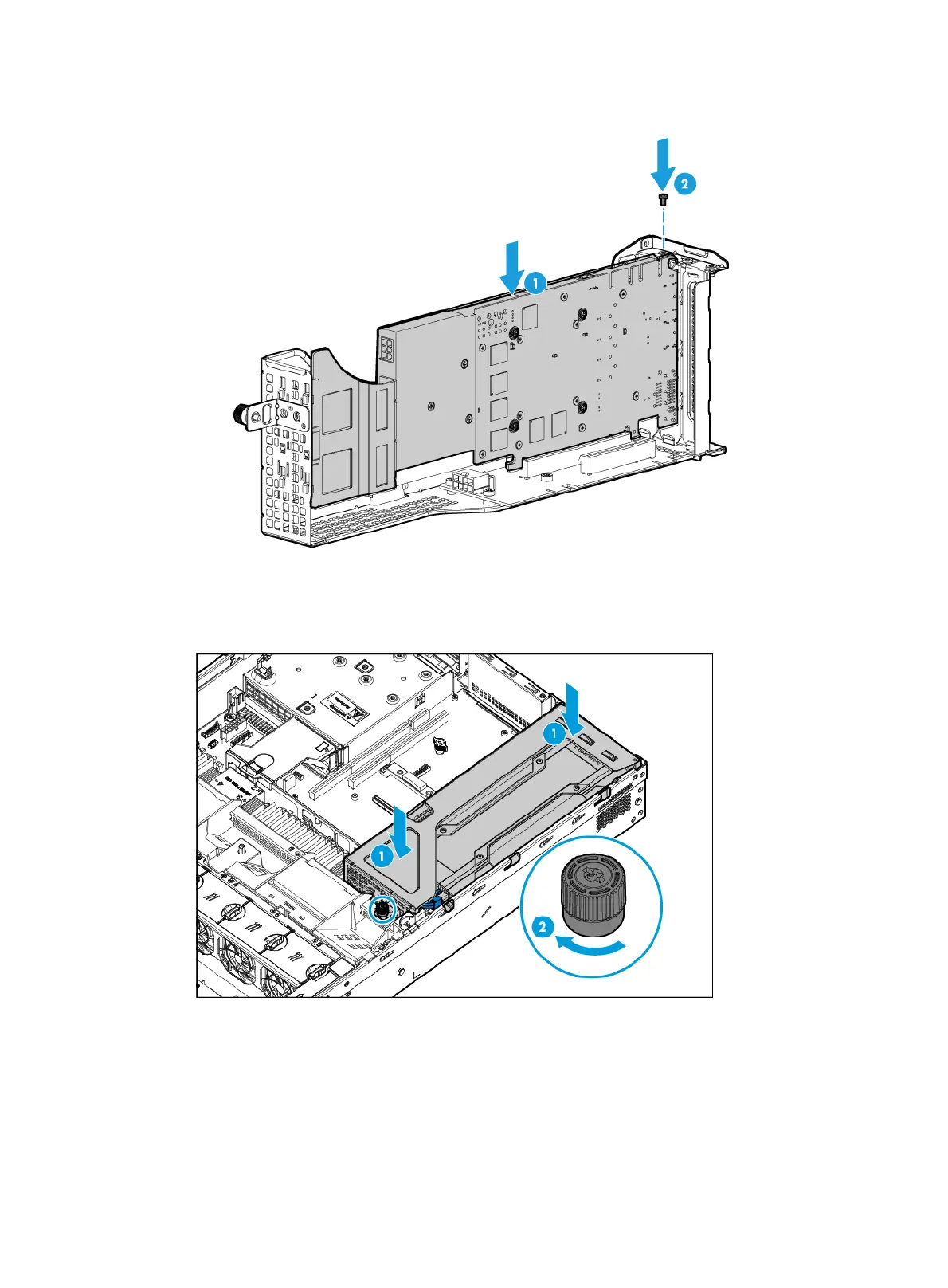

Figure 94 Installing a GPU module
7. Install the riser card on PCIe riser connector 1, and then fasten the captive screw to the chassis
air baffle, as shown in Figure 95.
Figure 95
Installing the riser card
8. Connect cables for the GPU module as needed.
9. Install the access panel. For more information, see "Installing the access panel."
10. Rack-mount the server. For more information, see "Rack-mounting the server."
11. Con
nect the power cord. For more information, see "Connecting the power cord."
12. Powe
r on the server. For more information, see "Powering on the server."
