10. Install the SATA M.2 SSD:
CAUTION:
If you are installing only one SATA M.2 SSD, install it in the socket as shown in Figure 100.
a. Insert the connector of the SSD into the socket, and push down the other end of the SSD.
Then, fasten the screw provided with the transfer module to secure the SSD into place, as
shown in Figure 100.

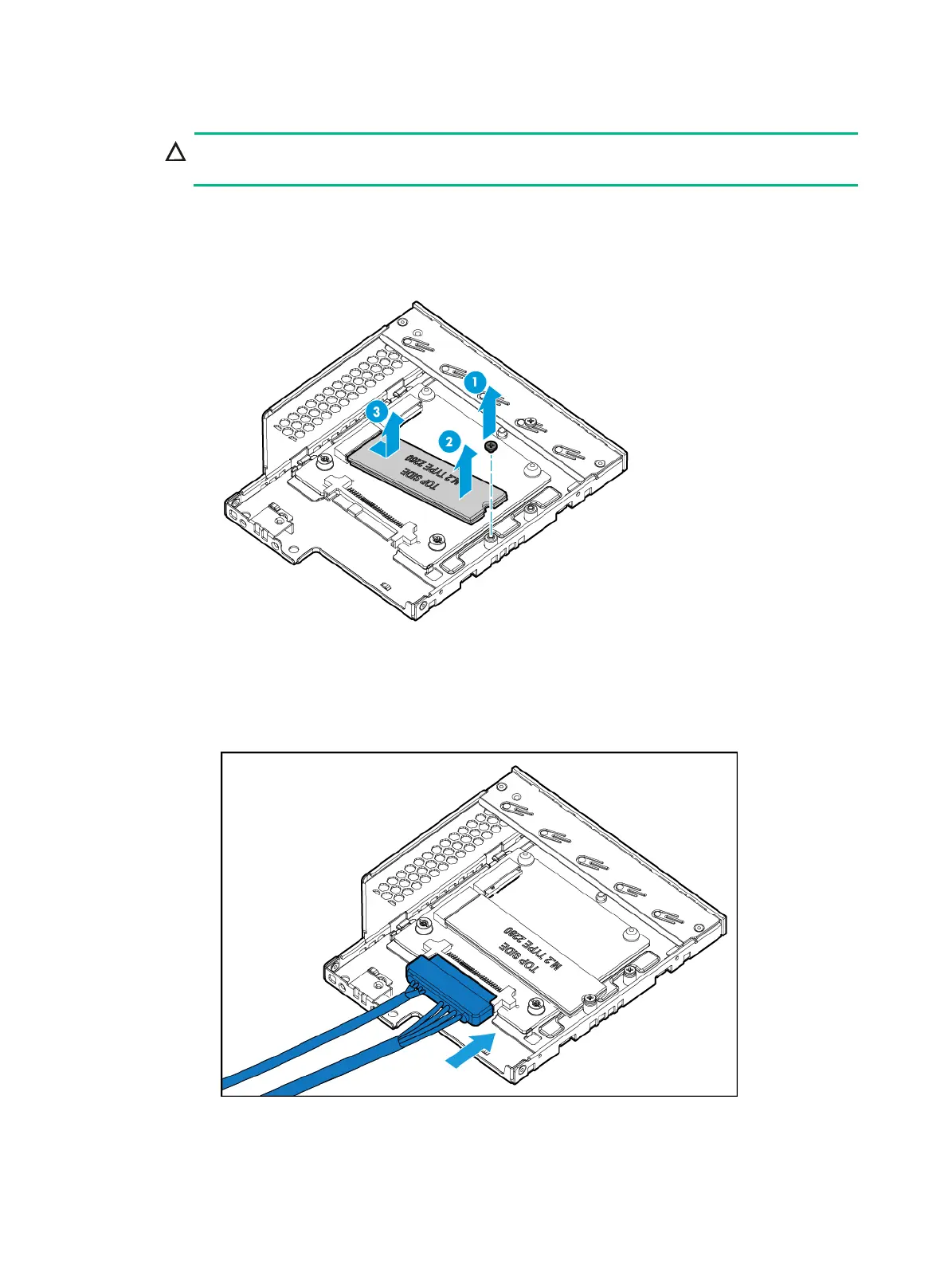

Figure 100
Installing a SATA M.2 SSD
b. Connect the SATA M.2 SSD cable to the M.2 transfer module, as shown in Figure 101.
If you install only one SATA M.2 SSD, use the cable marked with P/N 0404A0ST. If you
install two SATA M.2 SSDs, use the cable marked with P/N 0404A0TH.
Figure 101 Connecting the SATA M.2 SSD cable
c. Install the M.2 transfer module. The installation procedure is the same for an M.2 transfer
module and a SATA optical drive. For more information, see "Installing a SATA optical
drive."
