Conditions:
Guides in X-Direction must be straight i.e. may not be bent and must ensure a
parallel movement to the corresponding axis.
Bad loading and unloading of carriers (Steps lost), or faulty Barcode reading
indicates a need for corrective action. Adjustment may solve the problem. If not, the
Autoload Drive may need to be replaced.
Order of Adjustment
Follow strictly the order of adjustment
1. Cog wheel synchronization
2. Loading tray adjustment
3. Automatic Autoload Adjustment Procedure

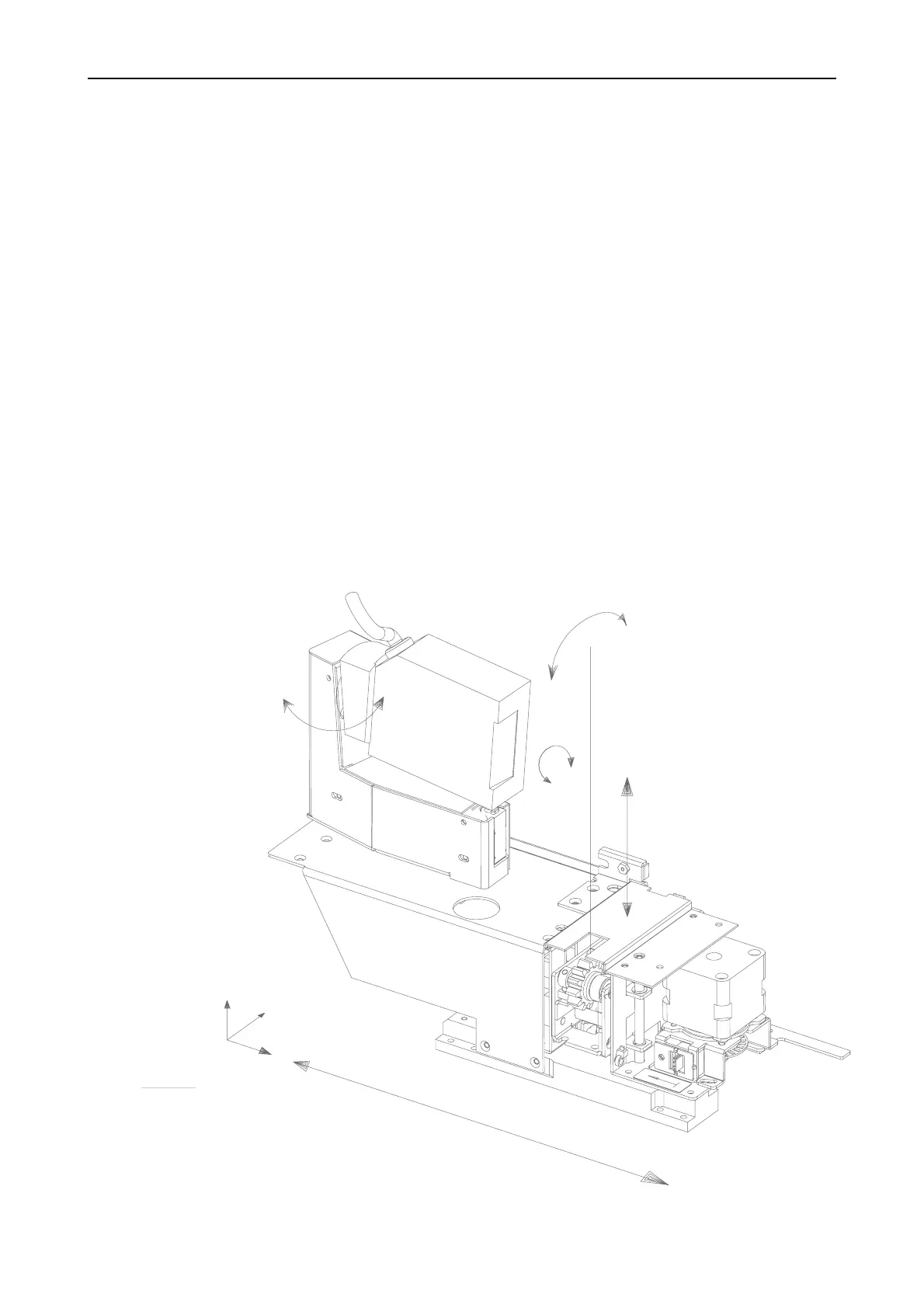

6.8.1 Autoload drive degrees of freedom
Z
X
Y
