6.8.4 Automatic Autoload Adjustment Procedure
Positioning of Cog wheels in X, Y and Z Direction and Sensors Adjustment:
Start Macro Program “AUTOLOAD AUTOADJUSTMENT.MCR” from Service
Software and carefully follow the instructions given in the program.
Follow exactly the instructions given in the adjustment program.

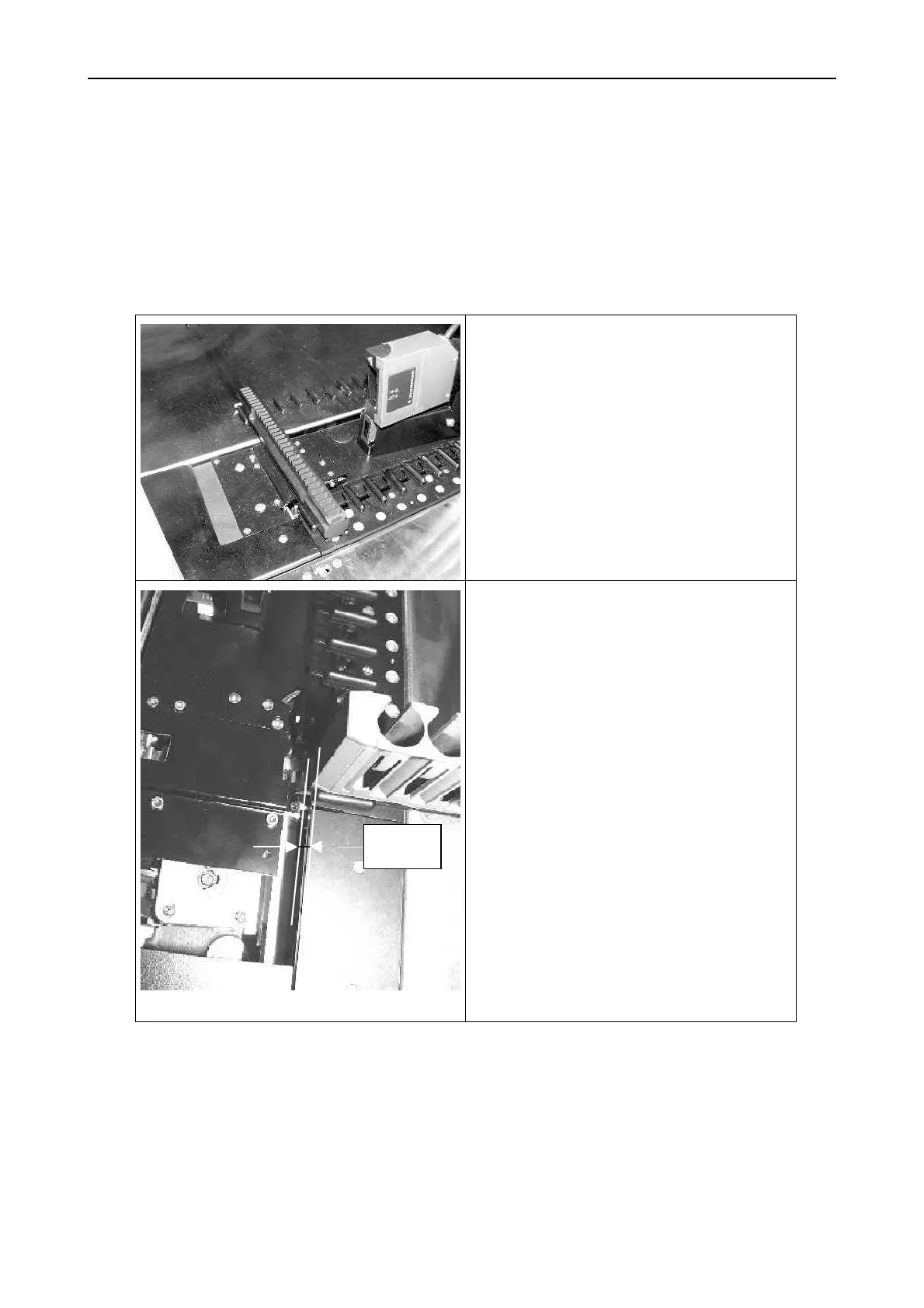

When the program asks for the
Autoload Calibration Tool to be placed
from the back onto Track position 1,
Ensure the cog rail is facing upwards
and push the Tool gently from inside
the ML STAR Instrument outwards
until the pin from the Tool attaches to
the slide block.
At the end of adjustment procedure,
after the Autoload Sensors Adjustment
Tool is unloaded, ensure a gap of
approx. 1 mm between Stop Hook and
the Carrier.
1 mm
