Microlab
®
STAR Service Manual
7-50
7.11.1 Part List
P/N Description SPC
173292 INSERTION GUIDE C
173293 STOP HOOK A
173299 SHEET METAL C
173300 DISK A
173729 INSERTION GUIDE - END C
173747 SPRING STRIP C
173843 LOAD DISPLAY BOARD B
400617 CYL-SCR M2.5X5 DIN912 A
403452 SUNK SCREW M3X6 DIN7991 A
7.11.2 Function
• LEDs guide the user as to where to load carriers.
• Entry and exit positioning for carriers to be loaded and unloaded.

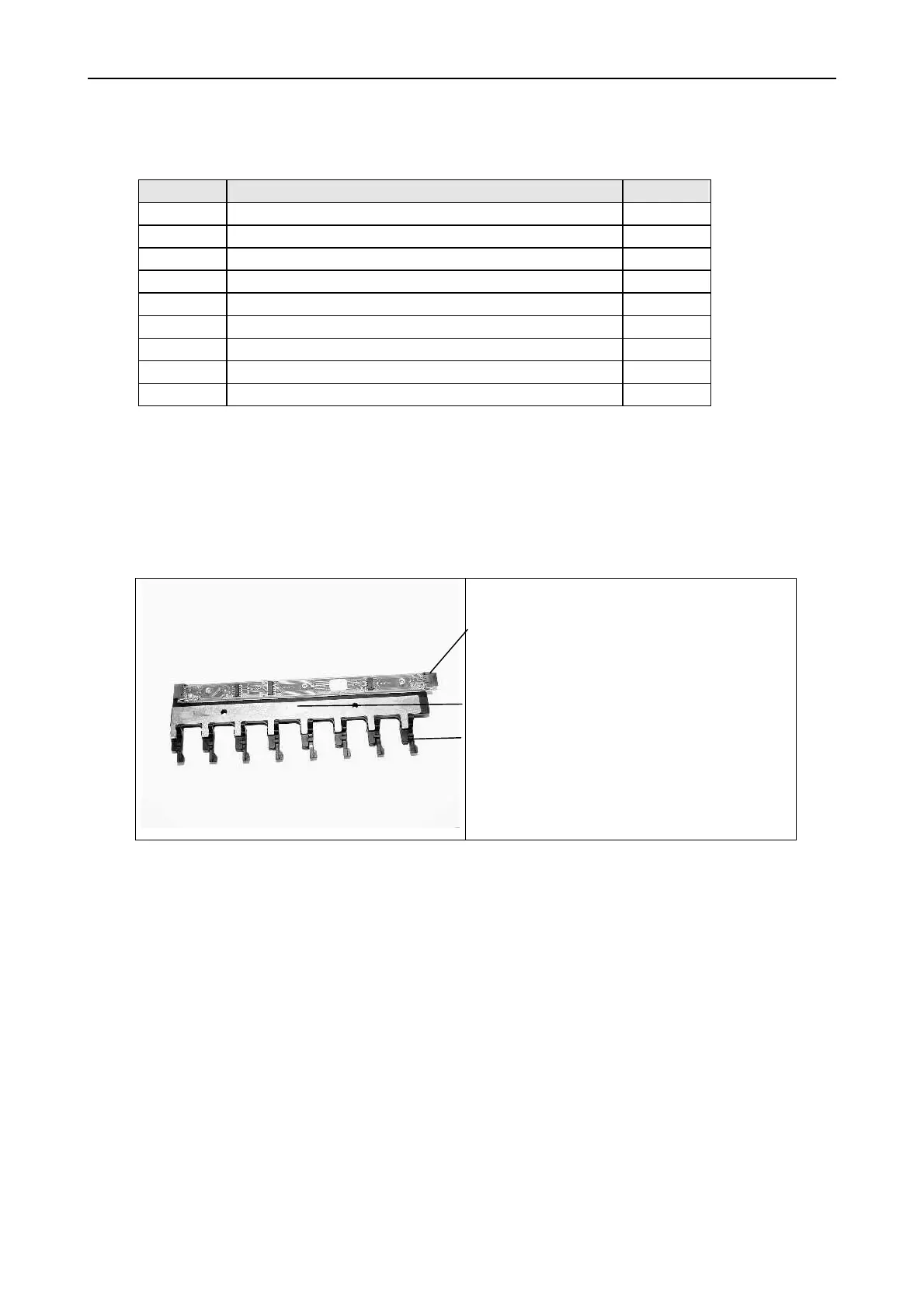

Bottom view:
• Load display board P/N 173843
(1x) is mounted with 3 screws P/N
400617.
• Sheet Metal P/N 173299 (1x)
• Stop Hook P/N 173293 (8x)
Not shown here is Spring Strip P/N
173747 which is mounted on Chassis
and pushes the Stop Hooks up.
7.11.3 Replacement
• See section 7.10 Auto Load X-Drive on page 7-46. Due to its plug design, start
removing from left to right.
• Replace Stop Hook by removing Load display board and sheet metal.
• Remove Load display board by loosening three screws and replace with a new
one.
Disk is located between Insertion Guides and Load display board.
Reassembly
Instructions are basically the reverse of those for disassembly.
