Microlab
®
STAR Service Manual
6-8

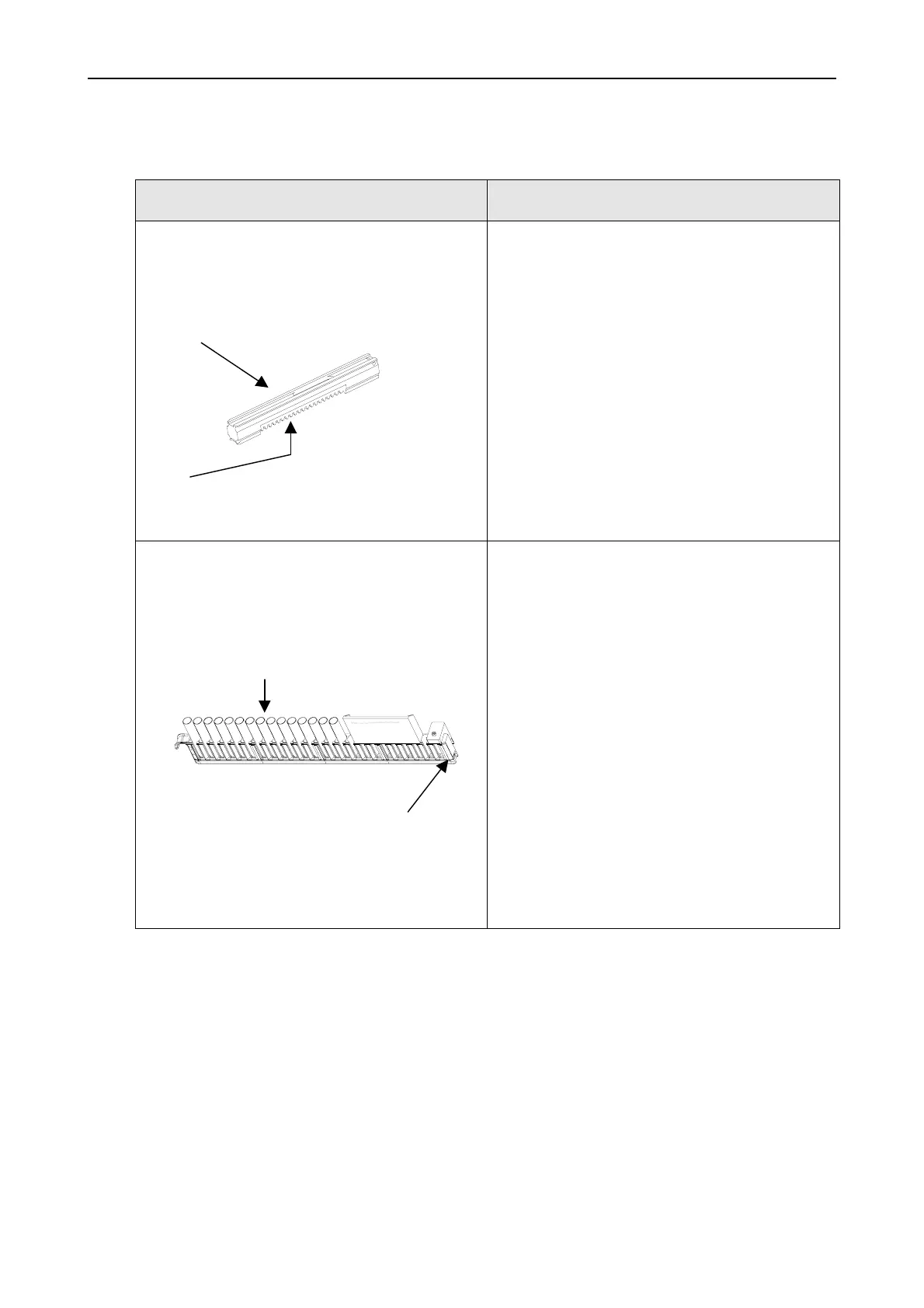

6.2.2 Tools for Autoload Adjustment
Tool Description
Autoload Calibration Tool P/N 173981 Supports mechanical Cock wheel
synchronization and automatically
positioning in X, Y and Z Direction of
Autoload drive.
Autoload Sensors Adjustment Tool P/N
173980
Checks Barcode reading, Cup
Presence sensor adjustment and the
quality of Carrier-loading and -
unloading.
Reading Height from Deck:
• for Plates 118 mm
• for Tubes 30 – 110 mm
Included with Autoload Sensors
Adjustment Tool are:
• Label P/N 173985 for Barcode
Reader alignment
• Reference Barcode Tube Set P/N
173986
Reference Barcode
Tube Set P/N 173986
Label P/N 173985
Cog rail only for mechanical Cog
wheel synchronization.
Groove for automatic positioning in
X, Y and Z Direction of Autoload
drive
