Hamilton Microlab STAR - Cog Wheel Synchronization

Microlab
®
STAR Service Manual
6-42

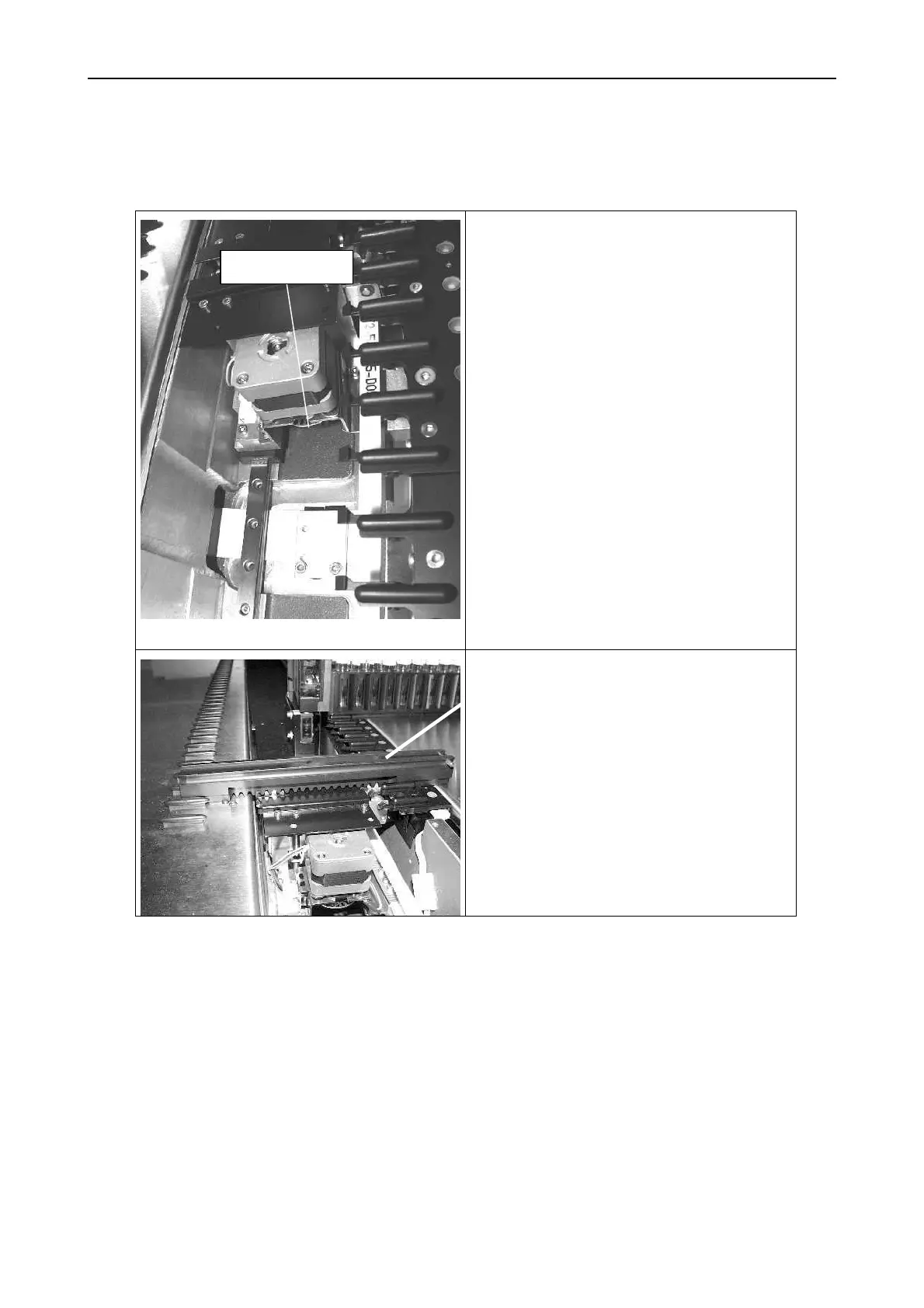

6.8.2 Cog wheel synchronization
To enable loading and unloading, cog wheels must be synchronized
Remove Ribbon from Autoload Drive
to gain access to Flag wheel. Move
Autoload drive to a arbitrary Track
Position.
Then place Autoload Calibration Tool
cog bar onto the same Track and turn
Flag wheel by hand to raise
cogwheels up.
Note: If both cogwheels fit perfectly in
Autoload Calibration Tool cog bar, no
corrective action need take place.
Fla
g
wheel
