Cog wheel synchronization (continued)

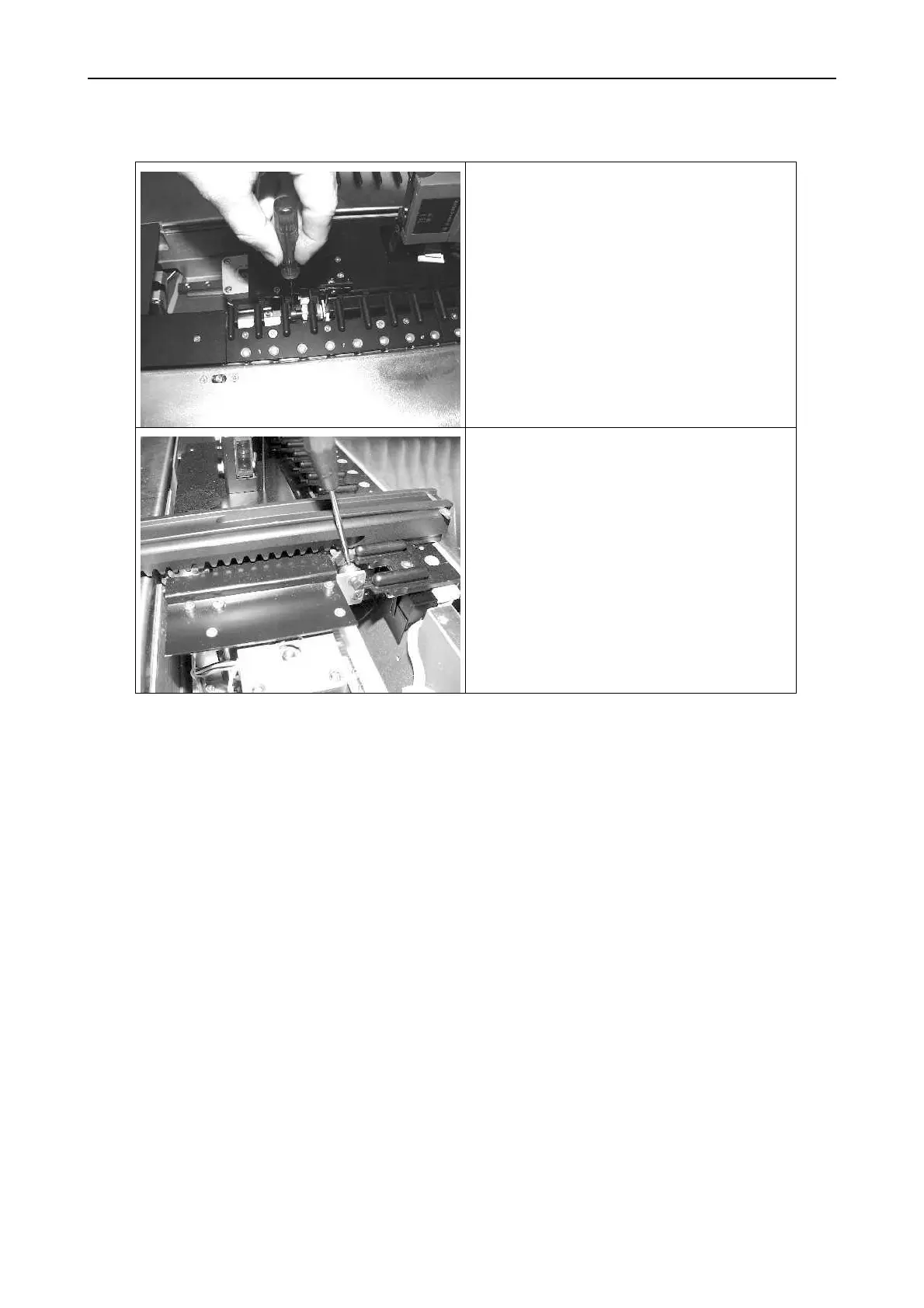

With the Autoload Calibration Tool in
place, loosen both Set screws from
front cogwheel and make cogwheels
properly fit into Autoload Calibration
Tool cog bar by raising cogwheels up
until the Autoload Calibration Tool is
just raised.
Then Tighten both Set screws from
front cogwheel before removing
Autoload Calibration Tool.
Cogwheels are now synchronized.
