4.2.3.4 Tip Waste station
There are two different types of tip waste station.
Regardless which one is being used, Tip waste station is always located on the
right side of Instrument and uses the hole / cutout in the deck panel.

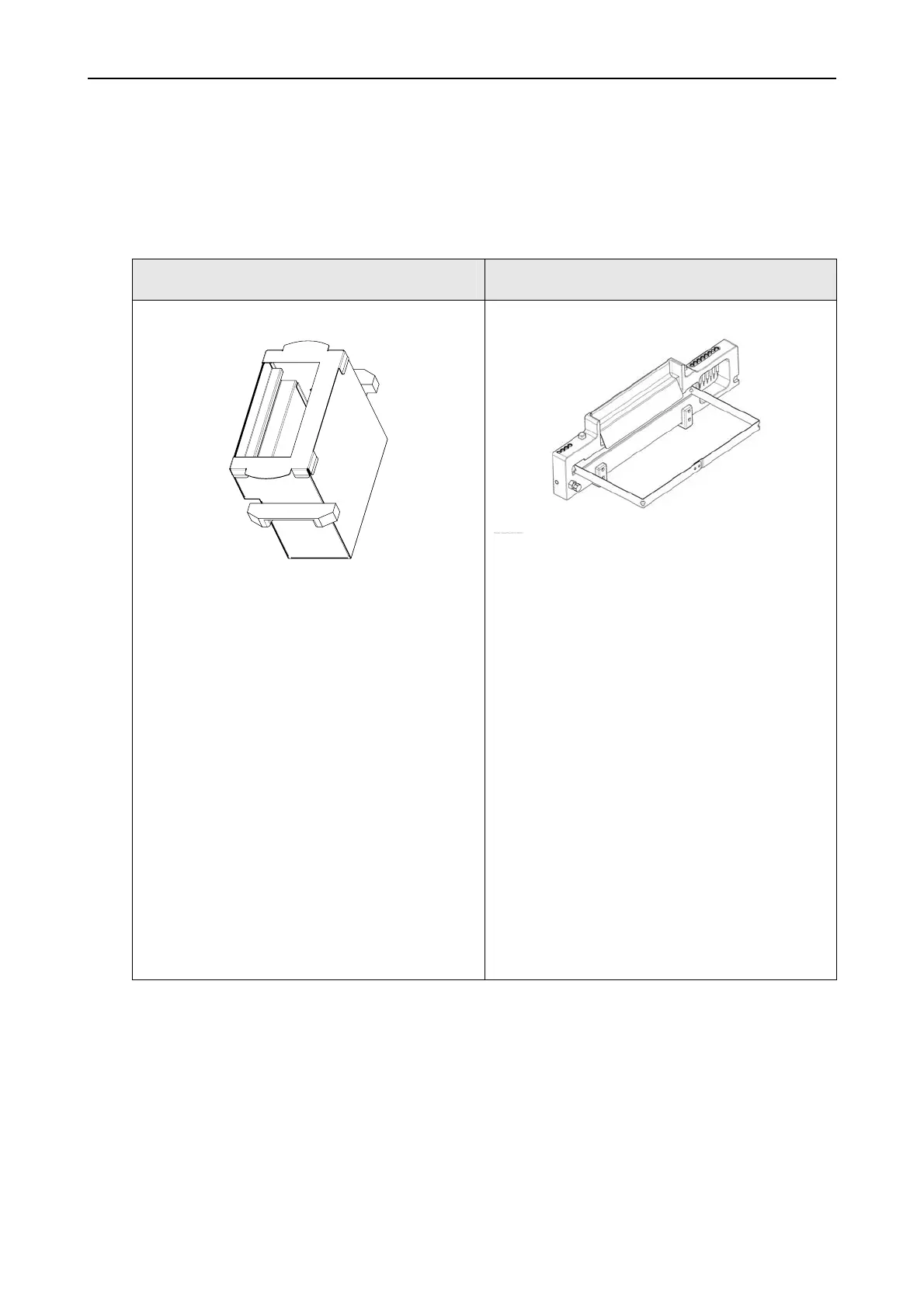

Microlab Star Microlab Star IVD
The Microlab Star Tip waste is a
container which is placed onto the deck.
It is positioned on the deck by placing it
through the hole in the deck panel.
Plastic Bags (which come with the
disposable tips) may be folded around
upper rim and fixed with the tip waste
lid.
The Microlab Star IVD Tip waste must
be mounted with its clamps onto the
deck.
It must lie flush with the outermost row
of slide blocks on the right and with the
carrier stops in the rear.
Plastic chute may folded around the
metal frame and guided vertically
through the instrument.
For a complete installation a tip waste
container is provided with the instrument
witch must placed underneath the tip
waste. Guide the Plastic chute into the
tip waste container.
