Microlab
®
STAR Service Manual
8-6

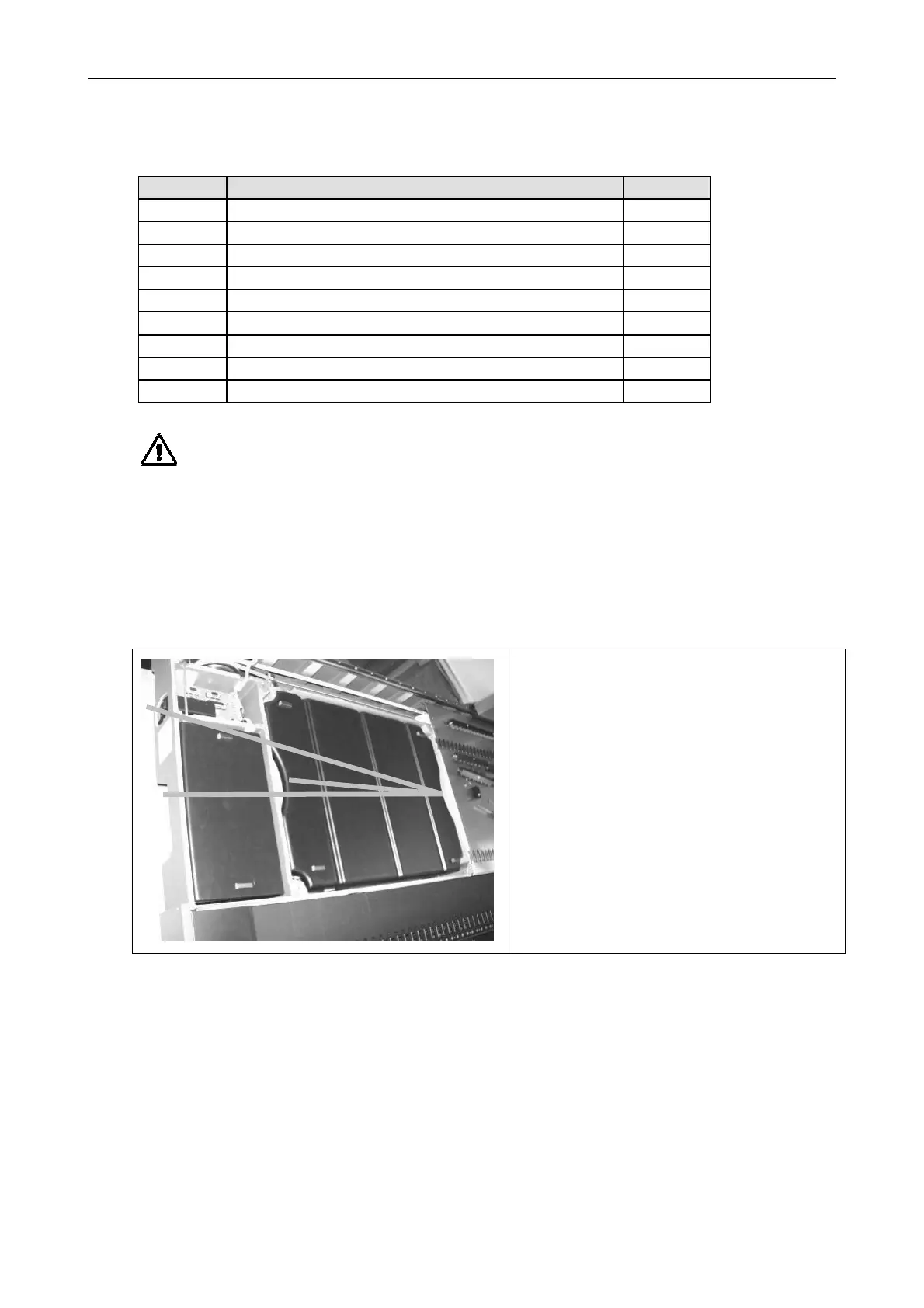

8.1.4.1 Part List
P/N Description SPC
146242 FAME ELECTRONIC RACK FAN C
173614 INTERFACE METAL PLATE C
173835 POWER DISTRIBUTION BOARD A
173881 MASTER BOARD PROG A
173882 AUTO LOAD BOARD PROG. A
395023 LINE FILTER B
396155 POWER SUPPLY 41V 600W B
400640 CYL-SCR M4x10 DIN912 TUFLOK A
403606 C-SUNK SCR M3X8 DIN7991 A2 TUFLOK A
Attention: when replacing a Master Board without an USB Interface, the Interface
metal plate P/N 173614 must be ordered as well. This is because all Master PCBs
contain RS 232 as well as USB COM Ports.
8.1.5 Covers over electronics
There are three covers, which
protect the electronic components
against any liquid which may drop
from the deck if liquids are spilled.
The covers are over the Line filter,
Master and Power compartment.
To stabilize them the self-adhesive
gasket P/N 7369085 must be placed
as shown over the covers (6 items,
each 3 cm long).
