Hamilton Microlab STAR - Part List; Function

Microlab
®
STAR Service Manual
7-47

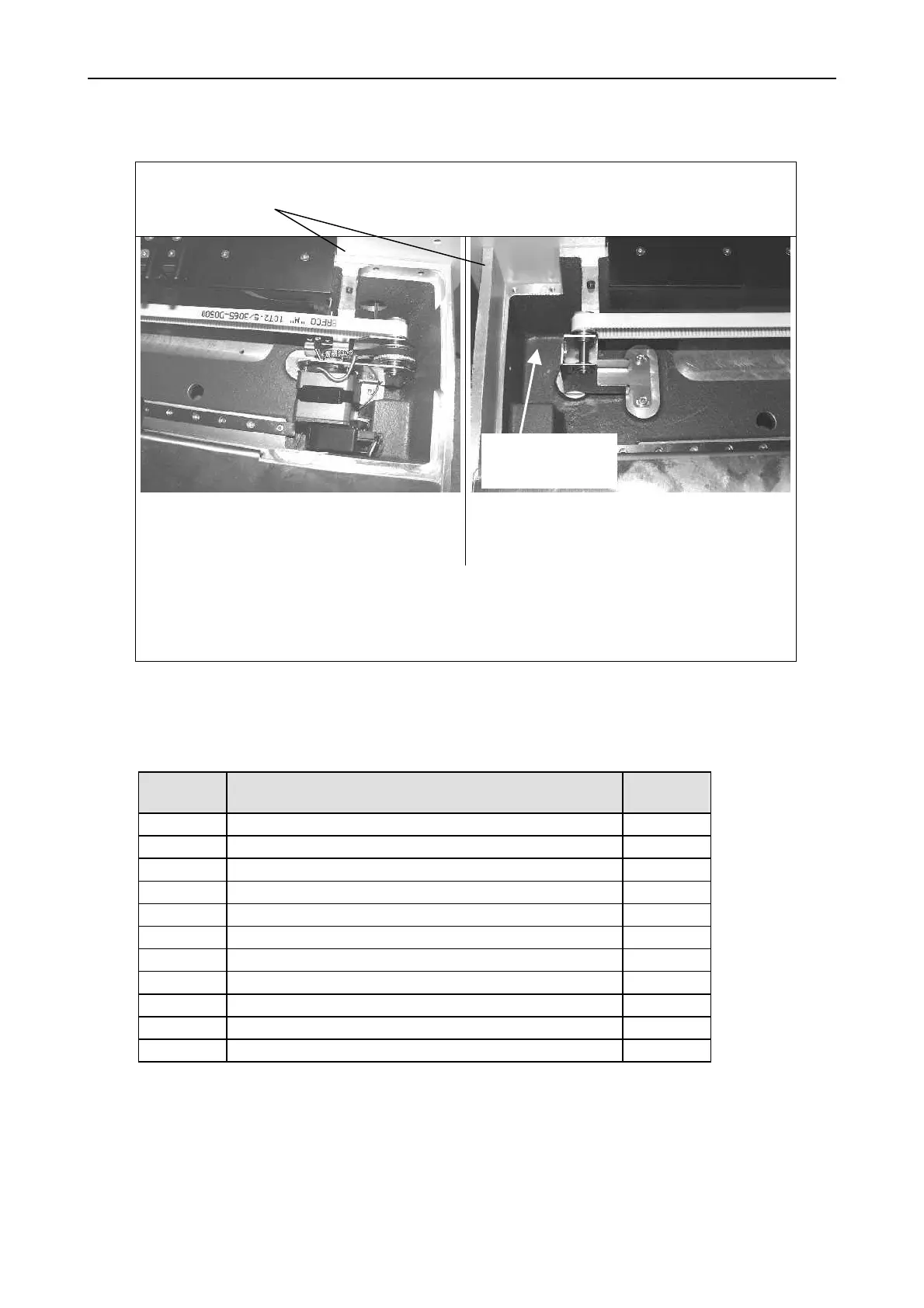

Auto Load X-Drive (continued)
Viewpoint is here from inside ML STAR Instrument to the back of the
vertical posts.
Primary drive Secondary drive with belt tension
screw P/N 420580.
Belt tension:
Tighten Belts, however do not over-tighten them (do not use excessive force).
7.10.1 Part List
P/N Description SPC
173855 SM Auto Load X-Drive C
173856 OS Auto Load X-Init C
250016 BALL BEARING ID=6 OD=13/15 C
250045 BALL BEARING ID=15 OD=35 C
258053 COG BELT MXL Z= 83 X 3/16" A
258134 COG BELT 10T2.5 3065 A
400640 CYL-SCR M4x10 DIN912 TUFLOK A
400653 CYL-SCR M3X6 DIN912 A2 TUFLOK A
405445 SET SCR M3x8 DIN916 A
413005 LOCK DISC 4 DIN6799 A
420580 CYL-SCR M4X50 DIN912 TUFLOK C
7.10.2 Function
• Carriers the Autoload and moves it in X-Direction
belt tension
screw
