7.9 Auto Load drive
18
18
Microlab
®
STAR Instrument with Autoload Option only

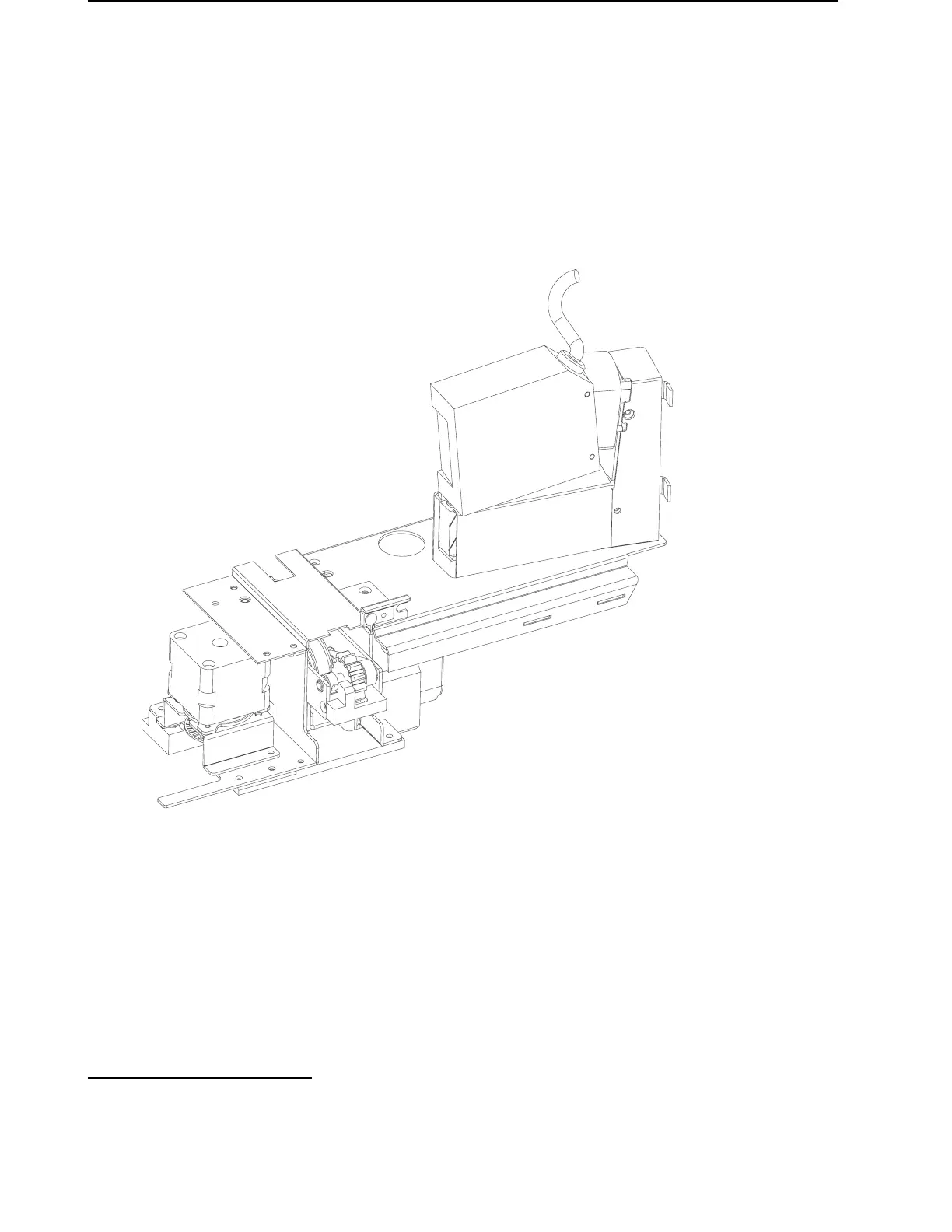

Barcode Reader:
• Vertical position for
Carrier recognition and
Tube Barcode Reading
• Horizontal position for
Plate Barcode Reading
Drives:
• X Drive:
positions the Autoload drive to the Track
• Y Drive:
The two Cogwheels load and unload Carriers.
• Z-Drive:
couples the two cogwheels into Carriers for y-
movement.
