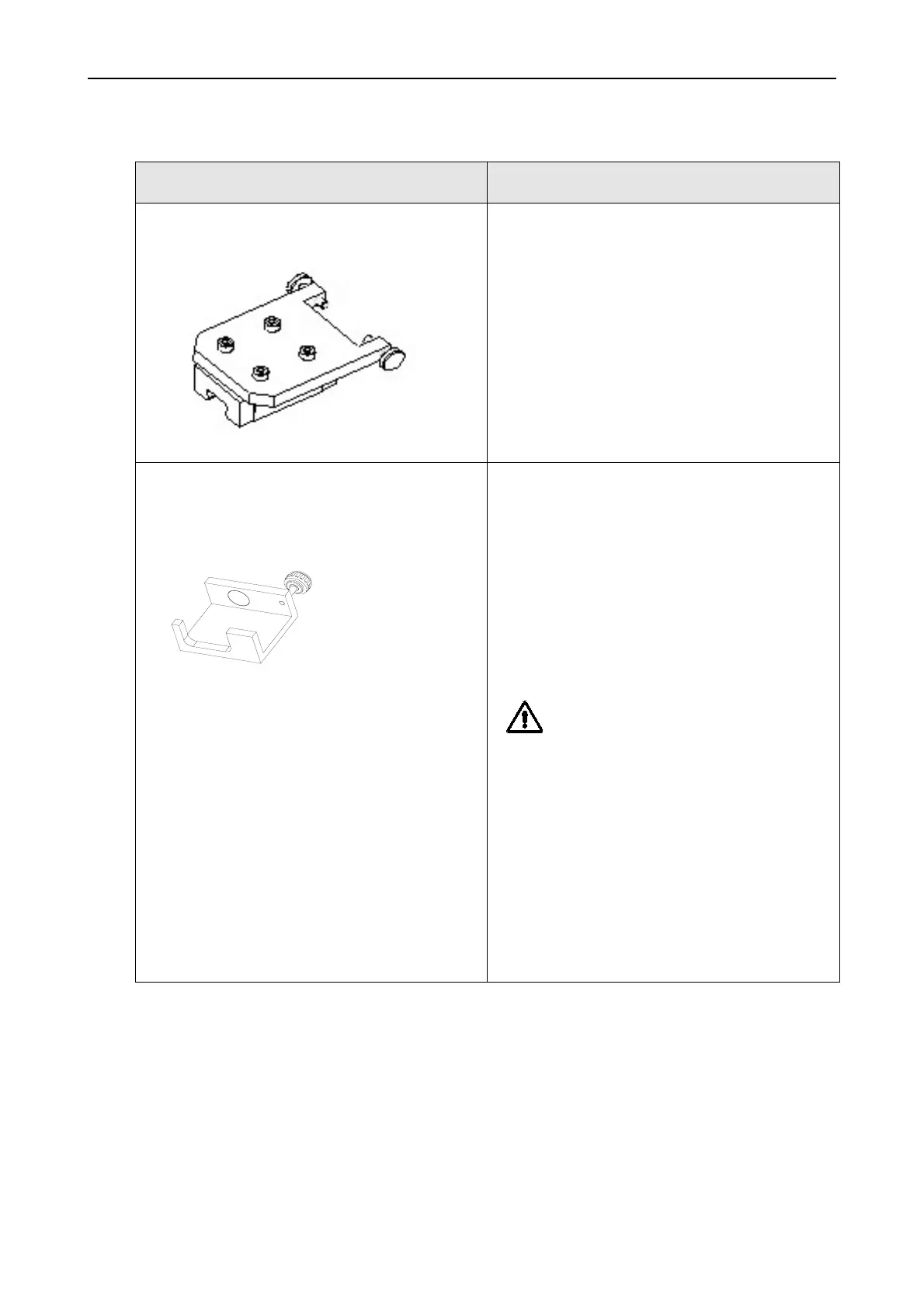

Tools for Pipetting Arm and Channels (continued)
Tool Description
Pipetting Arm Alignment Tool P/N
173956
Together with Channel Calibration Tool
this facilitates Pipetting Arm alignment
in X Direction.
Two Pipetting Arm Alignment Tools are
placed on the X-Guide, on the left and
right sides of the uncovered Pipetting
Arm.
Front window Magnet P/N 173950
Bridges the Front window switch and
enables the Microlab
STAR
Instrument to be run with Front window
open.
It is mounted on the left vertical Post.
Hint: The front window may also
deselected in the configuration settings
(use Service Software).
Attention: Beware of the Pipetting Arm
when it is moving on the Instrument.
Do not forget Front window Magnet on
the customer’s ML STAR Instrument.
This item is intended for use by trained
Service Technicians only.
Alternatively, if you deselected the front
window in the configuration settings, be
sure to re-select it now.
