7.7 Pipetting Channels
Pipetting Channel A
P/N 182101
Pipetting Channel B
P/N 182102

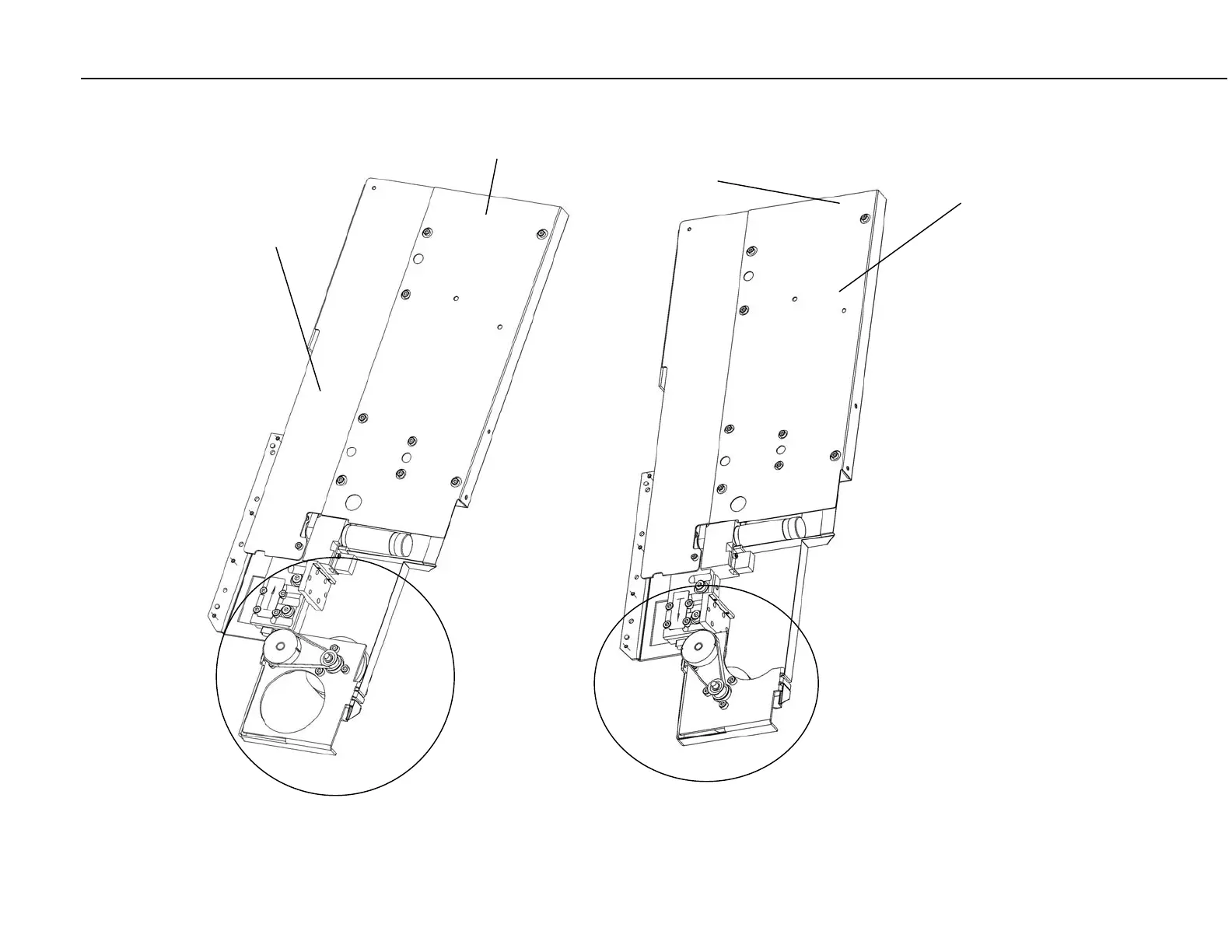

Location of Dip switches.
(opposite side as shown here)
Basically, the difference of the
Channels may only be found in the
lower section of each channel due to
their mounting order onto the
Pipetting Arm.
Shown here (circled) are the brackets
which connect the Channels to their
corresponding Slides (these run
either on upper or lower guides), and
therefore the mounting of the Y-Motor
to ensure enough spacing between
the channels
