Microlab
®
STAR Service Manual
7-30
Remounting:
• Instructions are basically the reverse of disassembly instructions.
• Turn Y-Spindle completely in by hand not using much force.
• Using a Torque wrench, tighten the M4 Hex Nut with 60 cNm.
Attention: Check for correct Dip Switch setting on new channels. Refer to section
8.1.6 Node settings on page 8-5. Also, check for correct Firmware Version, because
all Pipetting Channels must using the same Firmware Version.
• If necessary, download the latest firmware onto the new Pipetting Channel.
• Adjust Channel according to section 6 Adjustment and Calibration on page 6-1.

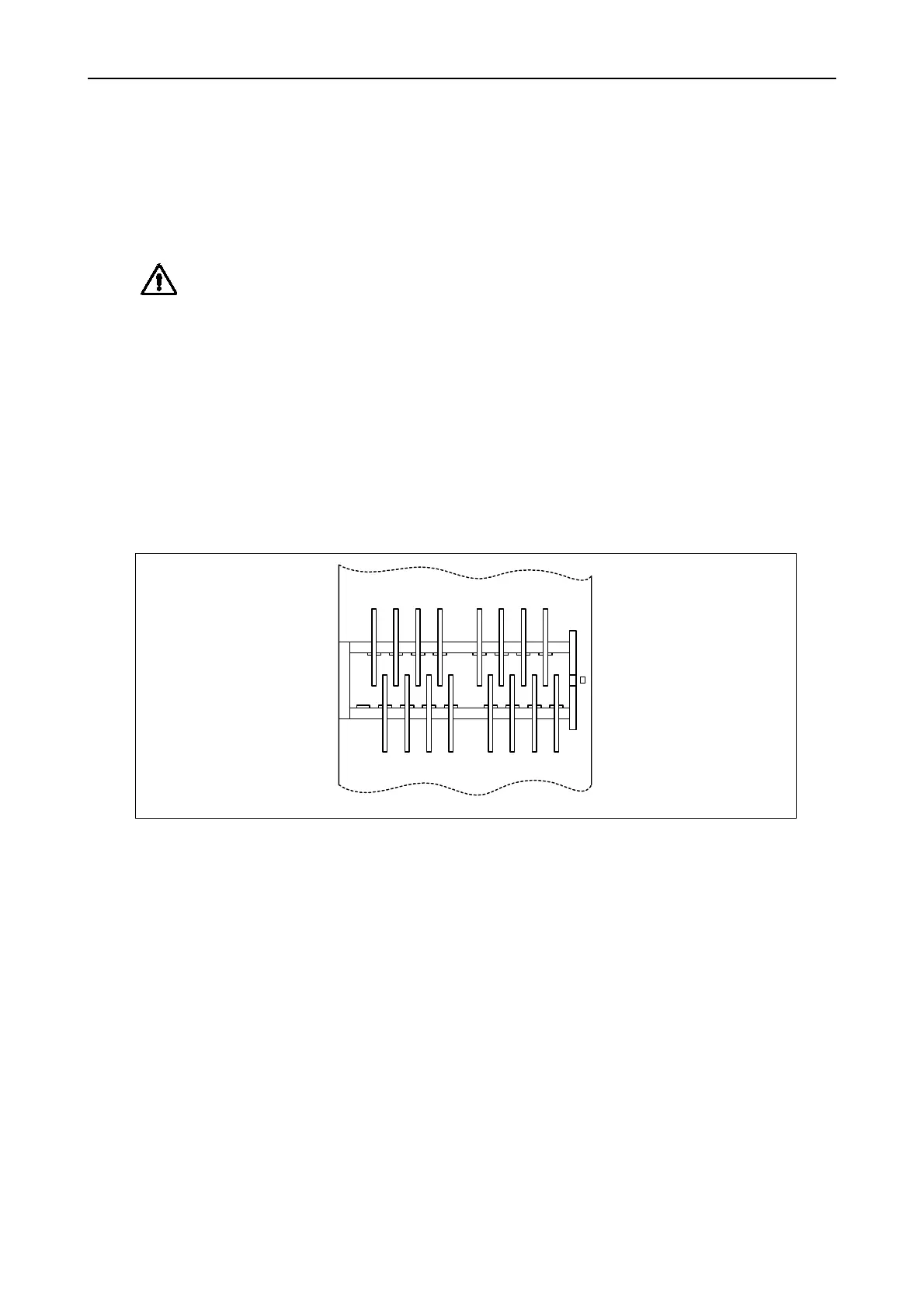

Order of Pipetting Channel placement
Back
of
Pipetting Arm
1
A
5
A
3
B
7
B
A
4
A
8
B
2
B
6
A
9
A
13
A
11
B
15
B
A
12
A
16
B
10
B
14
Front
of
Pipetting Arm
Shown above are the location of all Channels and their numbering.
