Unpacking the instrument (continued)
Initial situation: the ML STAR Instrument is still sitting on the wooden pallet.
Next action is to remove the Pipetting Arm‘s supporting and protective Foam blocks.
Therefore untie cords around Pipetting arm housing, then remove Pipetting Arm’s
Top and front housing.
1. Carefully remove all protective foam blocks from between channels
2. Remove pipetting arm supporting block from the front
3. Carefully remove channel supporting block from underneath pipetting arm
4. If iSwap is present, untie it from the back of Pipetting arm and carefully remove
its protective block.

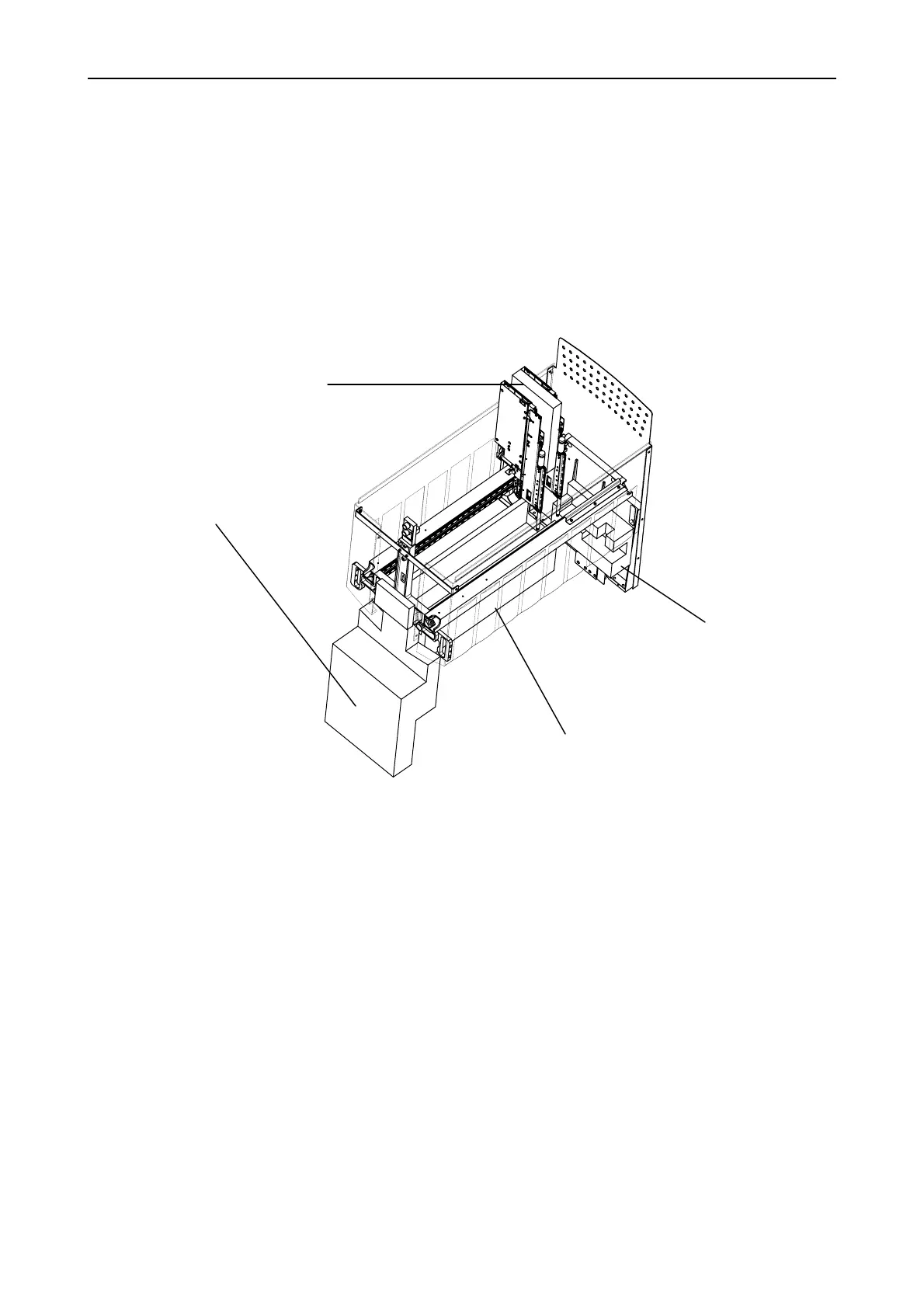

Channel protection
foam blocks
(between Channels)
Pipetting Arm
supporting
Block
iSwap protection bloc
Channel supporting block
To Next Page
