4. Series 8 IOTA Pinouts
4.3. Analog Output IOTA
Models 8X-TAOXA1, 8X-TAOXB1
R500 Series 8 I/O User's Guide 77
April 2017 Honeywell

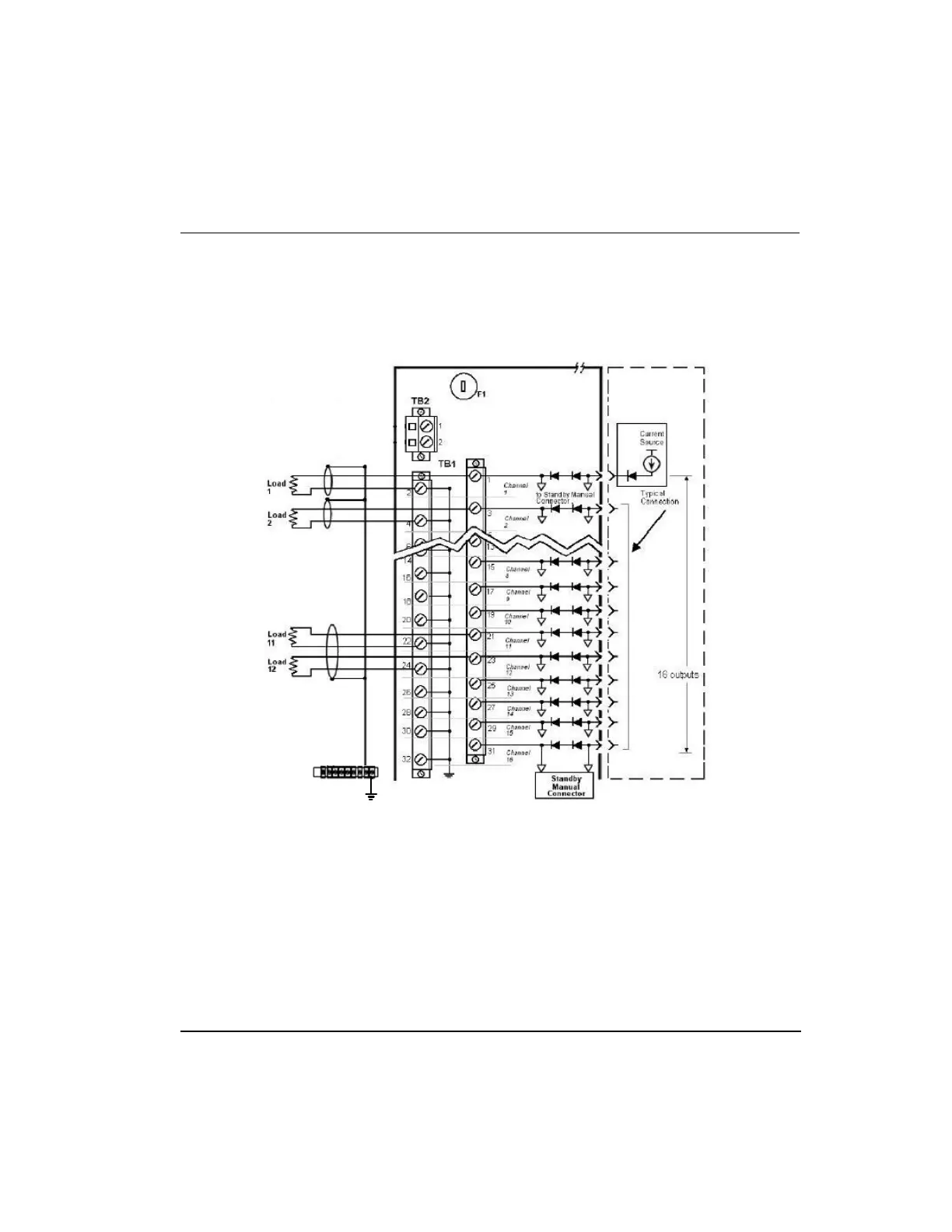

Series 8 Analog Output 6 inch, non-redundant IOTA and field wiring connection.
Shield
Field Devices
and Wiring
Analog Output IOTA AO IOMs
Figure 18 Series 8 Analog Output 6 inch, non-redundant IOTA and field
wiring connection
