4. Series 8 IOTA Pinouts
4.4. TC/RTD IOTA
Models 8X-TAIMA1
R500 Series 8 I/O User's Guide 83
April 2017 Honeywell

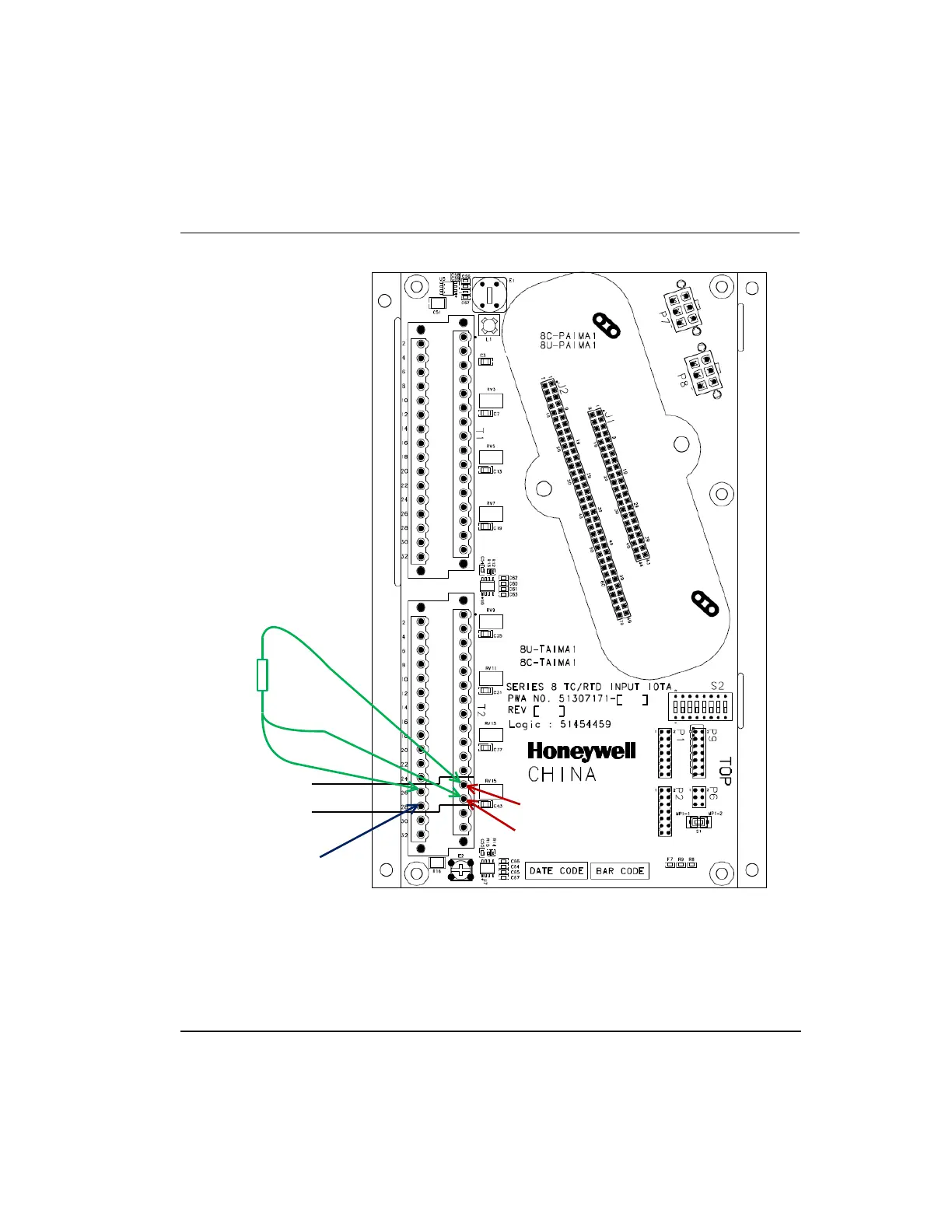

Figure 21 Series 8 TC/RTD IOTA and field wiring connections
TC-
TC+
Channel X
Shield_Chassis_ground
RTD1
RTD2
RTD3
