4. Series 8 IOTA Pinouts
4.2. Differential Analog input IOTA (Models 8X-TAIDA1 and 8X-TAIDB1)
R500 Series 8 I/O User's Guide 61
April 2017 Honeywell
Table 13 Custom wiring to support differential Analog Input
Custom wiring scenarios

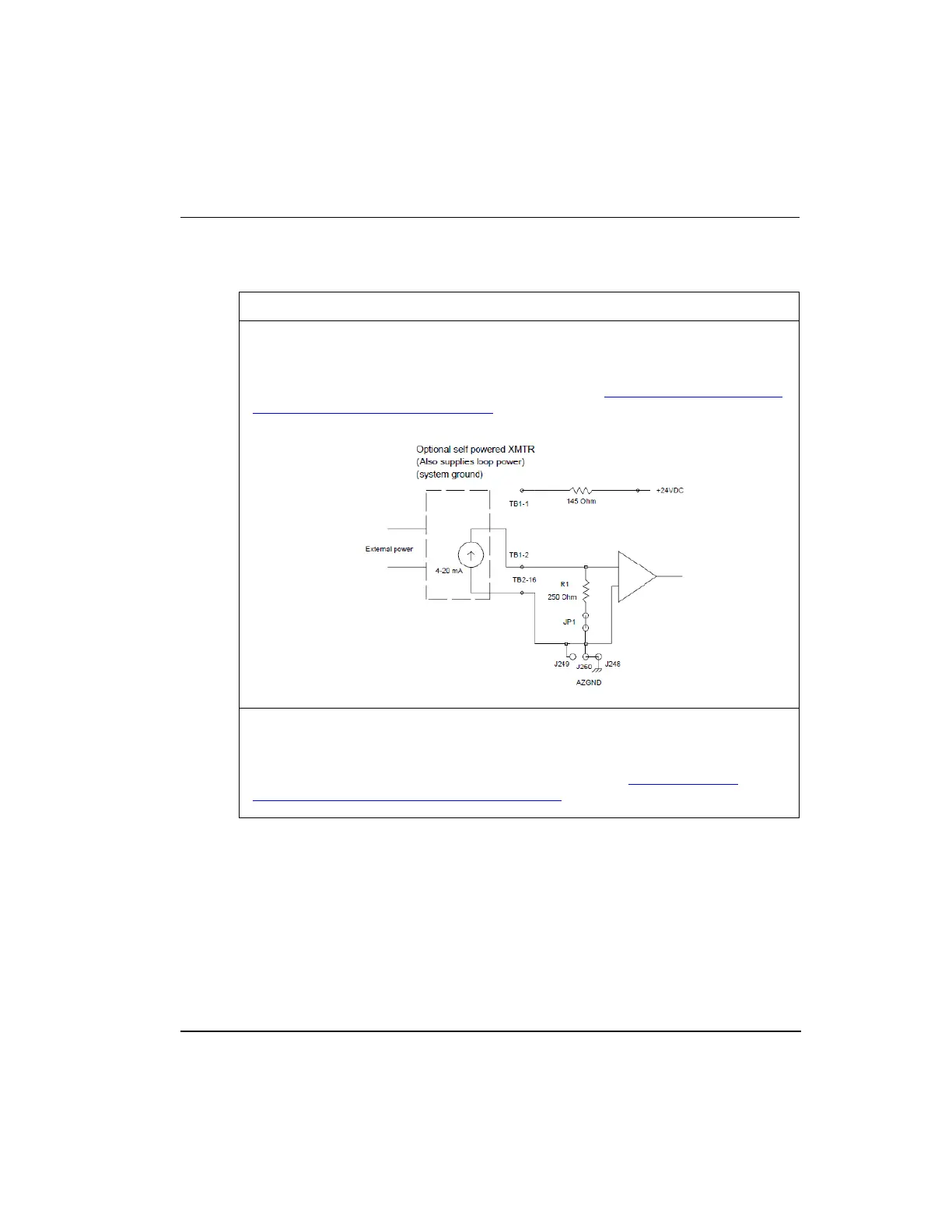

Self-powered transmitter with Experion system ground
Self-powered transmitter is connected across the TB1-2 and TB2-16 for the channel 1
of the non-redundant 9 inch IOTA as illustrated in the following figure. Configure the
default jumper settings as single-ended according to the Table 15 Series 8 differential
Analog Input 9 inch and 12 inch IOTAs – terminal block 2.
Self-powered transmitter with device grounded
Self-powered transmitter is connected across the TB1-2 and TB2-16 for the channel 1
of the non-redundant 9 inch IOTA as illustrated in the following figure. Configure the
jumper settings for differential configuration according to the Table 15 Series 8
differential Analog Input 9 inch and 12 inch IOTAs – terminal block 2.
