4. Series 8 IOTA Pinouts
4.5. Digital Input 24V IOTA
Models 8X- TDILA1, 8X- TDILB1
90 Series 8 I/O User's Guide R500
Honeywell April 2017

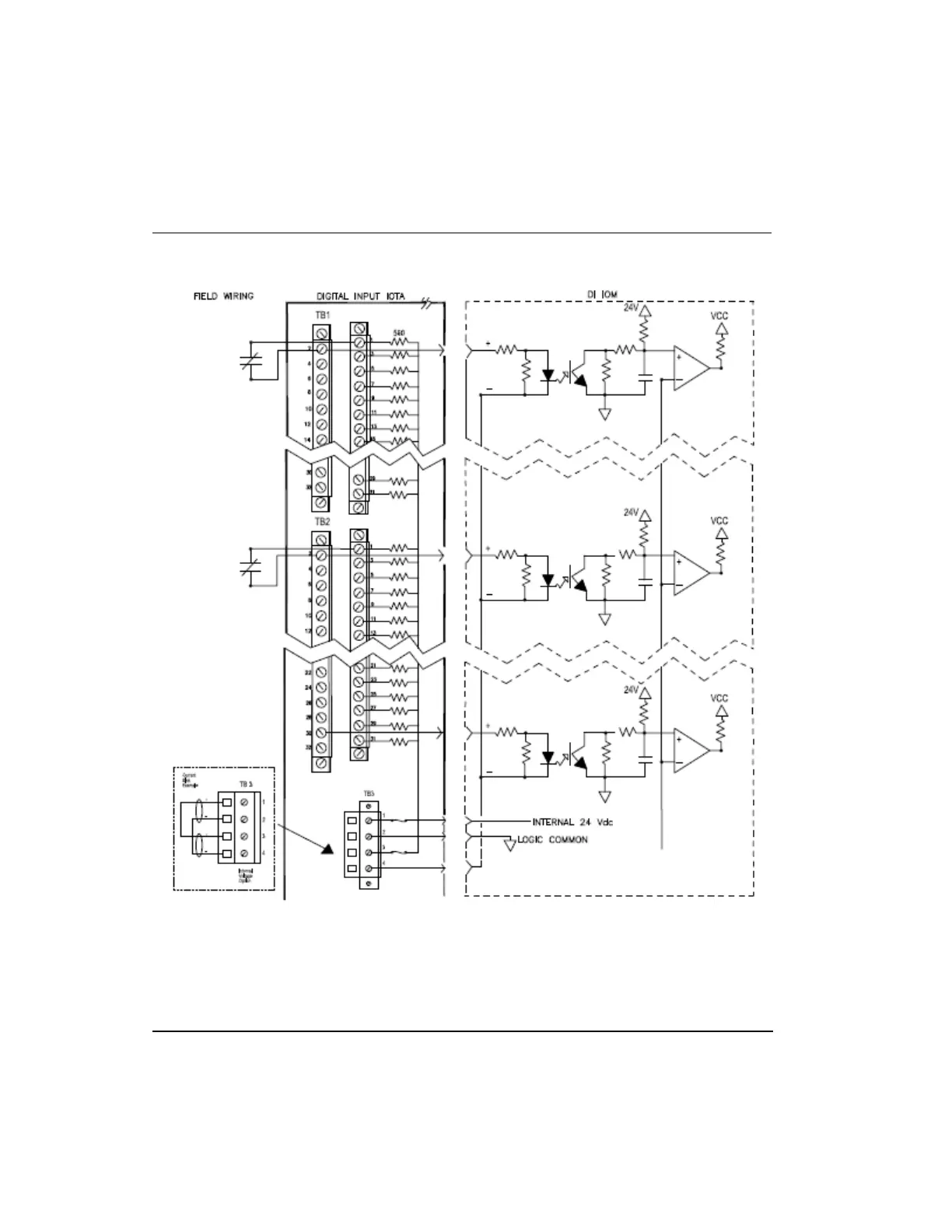

Figure 23 Series 8 24V Digital Input 9 inch, non-redundant IOTA and field
wiring connection
