4. Series 8 IOTA Pinouts
4.5. Digital Input 24V IOTA
Models 8X- TDILA1, 8X- TDILB1
R500 Series 8 I/O User's Guide 91
April 2017 Honeywell
Series 8 24V Digital Input 12 inch, redundant IOTA is illustrated in the following figure.

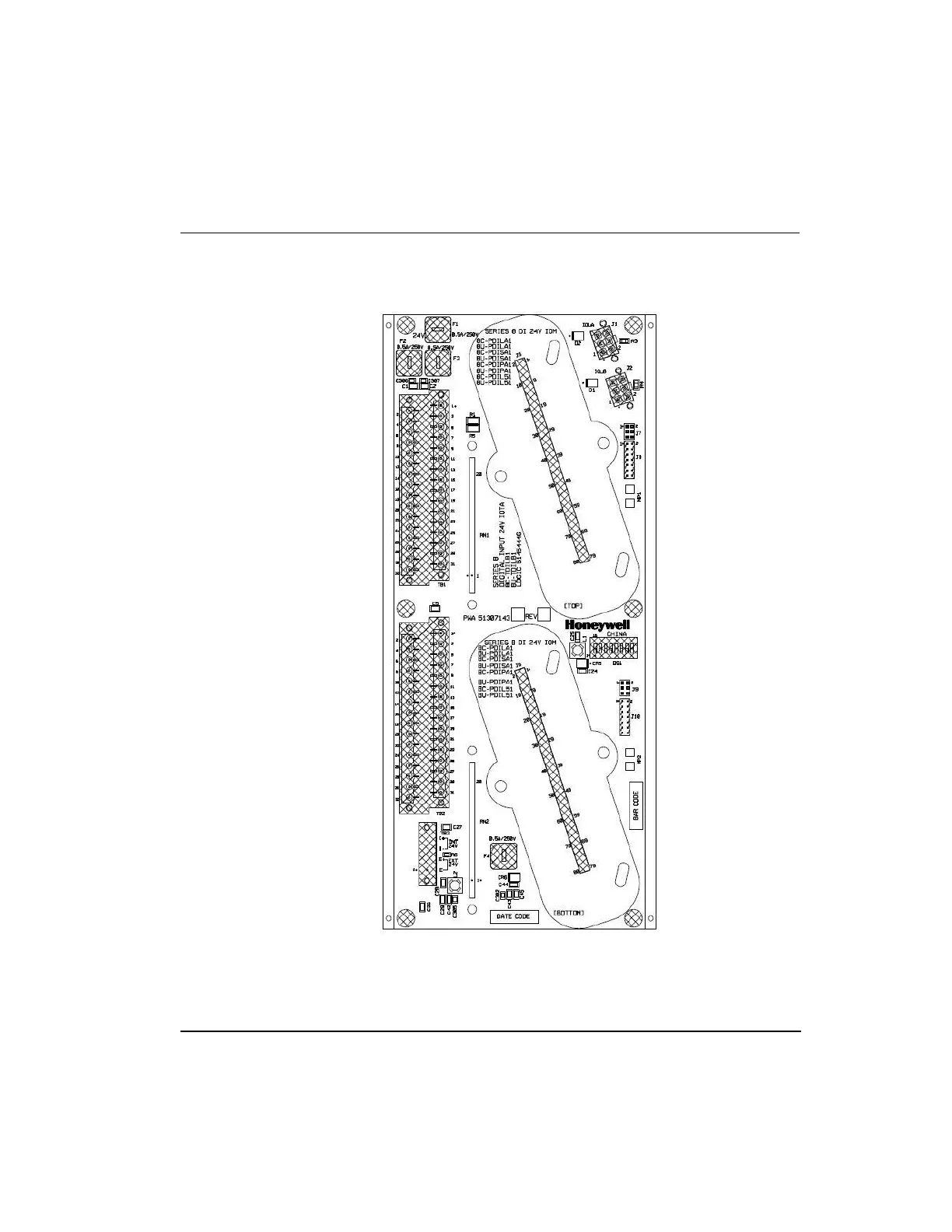

Figure 24 Series 8 24V Digital Input 12 inch, redundant IOTA
