Removing and Replacing Components
Removing and Replacing Internal Components
Chapter 4
100
Figure 4-60 Remove the PSI Interface Module
Replacing the Power Supply Interface Module
Step 1. Place the PSI module into the chassis by sliding the module retaining tab into the socket on the
hard disk drive bay wall. See Figure 4-61 for more information.

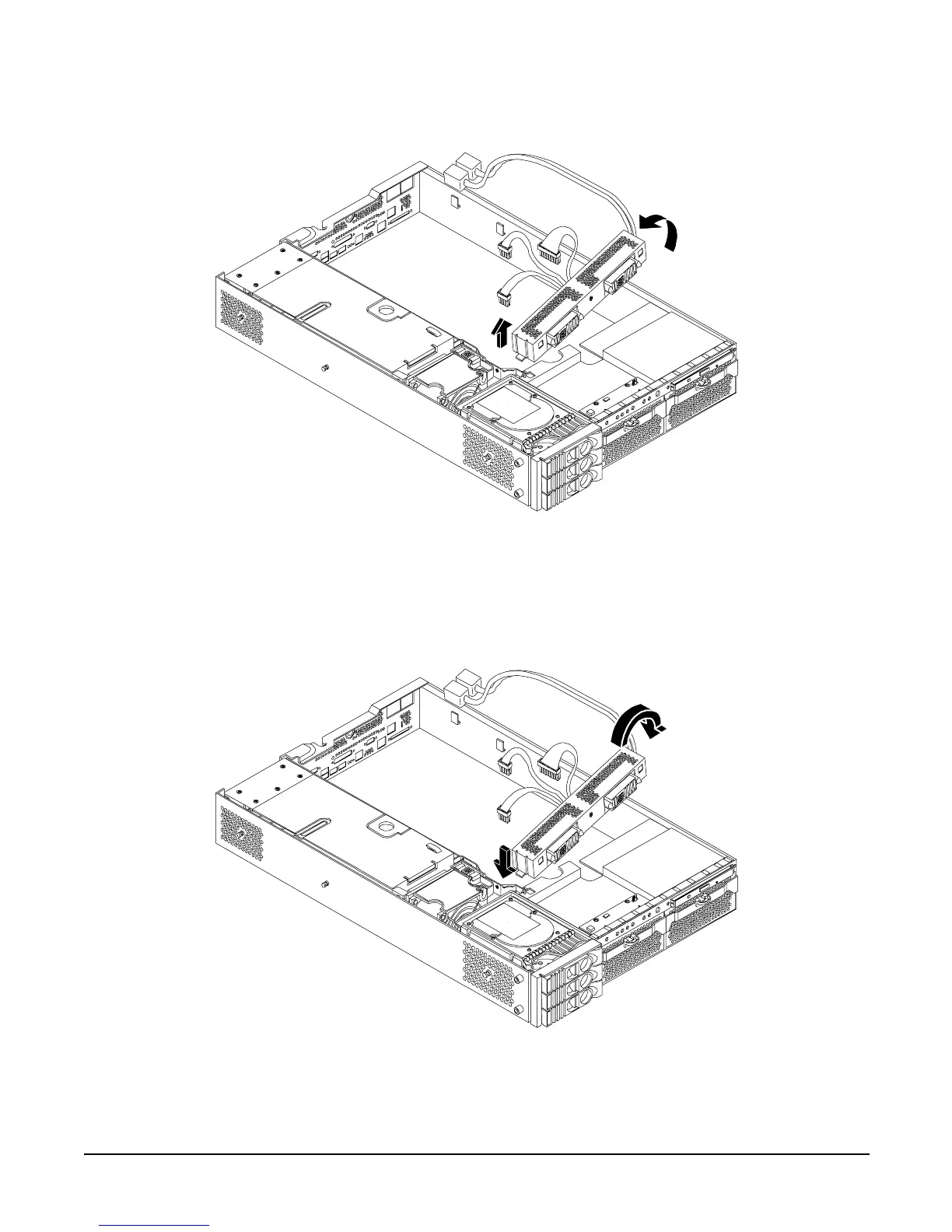

Figure 4-61 Replacing the Power Supply Interface Module
Step 2. Screw in the PSI module mounting screw and secure the power cables behind the holding clips. See
Figure 4-62 for more information.
Front of server
Front of server
