Controls, Ports, and LEDs
Rear Panel
Chapter 2
38
LAN Gb A Connector
The rear panel 10/100/1000 base-T ethernet LAN Gb A connector has the following status and activity LEDs.
See Figure 2-7 and Table 2-7 for the location and description of the LAN Gb A LEDs.

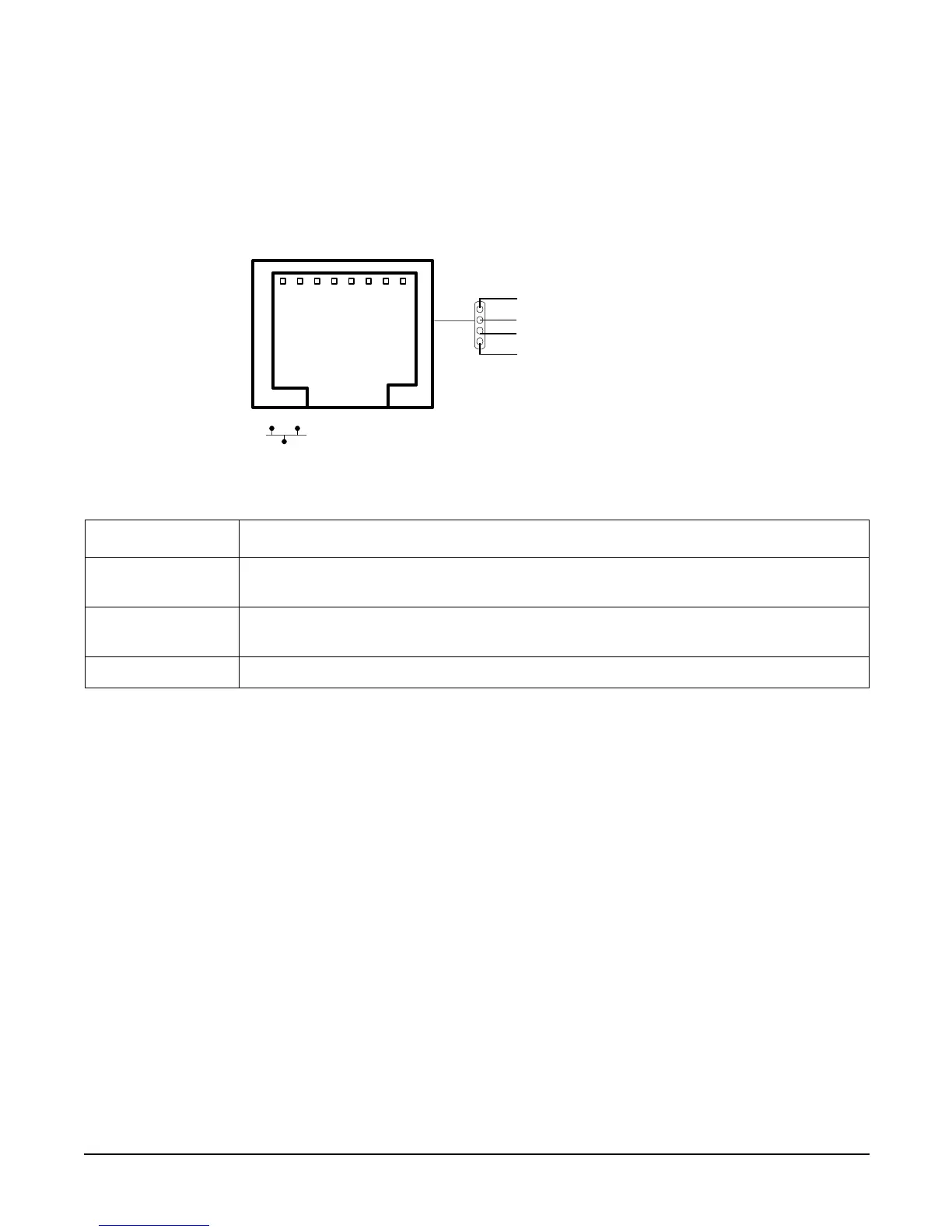

Figure 2-7 10/100/1000 base-T ethernet Gb LAN A Connector LEDs
Table 2-7 10/100/1000 base-T ethernet Gb LAN A Connector LEDs
LED Description
1000BT Blinking amber—the 1000 MHz with ethernet protocol and twisted-pair wiring is
enabled, off—no link.
100BT Blinking green—the 100 MHz with ethernet protocol and twisted-pair wiring is
enabled, off—no link.
Activity Blinking green—LAN activity. With all other LEDs off, activity is 10BT link.
Not used
1000BT
100BT
Activity
