Removing and Replacing Components
Removing and Replacing Internal Components
Chapter 4
63
Step 4. Remove the main portion of the airflow guide:
a. Hold the guide using the opening on top of the guide. See Figure 4-20 for more information.
b. At the same time, grasp the back end of the airflow guide and lift the guide out of the server.

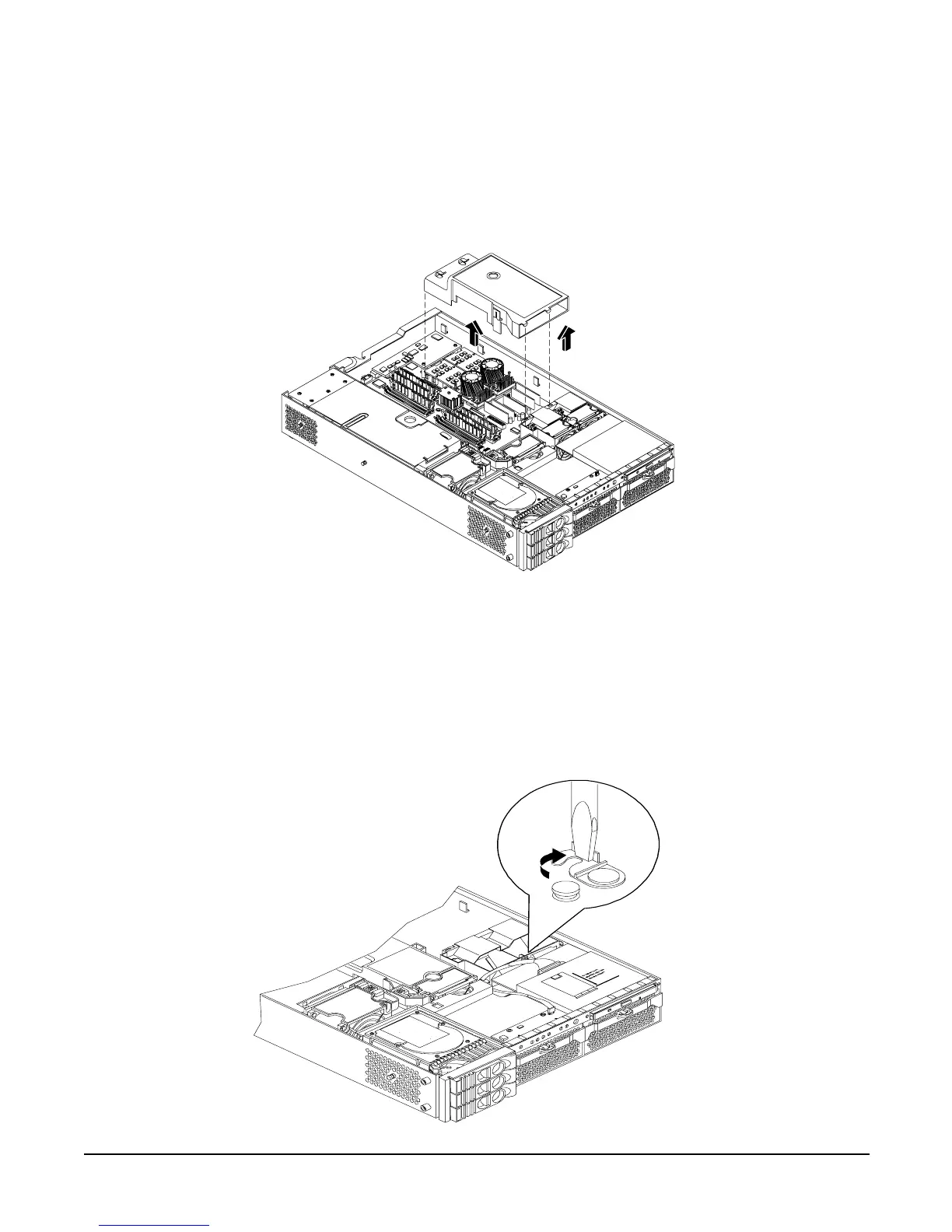

Figure 4-20 Removing the Processor Airflow Guide
Step 5. Disconnect the power cable connected to the guide from the system board.
Step 6. Remove the front portion of the airflow guide by doing the following:
a. Remove server fans 1A and 1B.
b. Rotate the clip clockwise to release the latch. See Figure 4-21 and Figure 4-22 for more
information.
Figure 4-21 Open the Release Clip
Front of server
Front of server
