HP Integrity rx2620 - Figure 4-39 Removing the PCI Cage; Figure 4-40 Removing the PCI Cage Cover

Removing and Replacing Components
Removing and Replacing Internal Components
Chapter 4
80
Step 3. Lift up on the PCI cage release lever and the back edge of the PCI cage and lift the PCI cage out of
the server. See Figure 4-39 for more information on removing the PCI card cage.

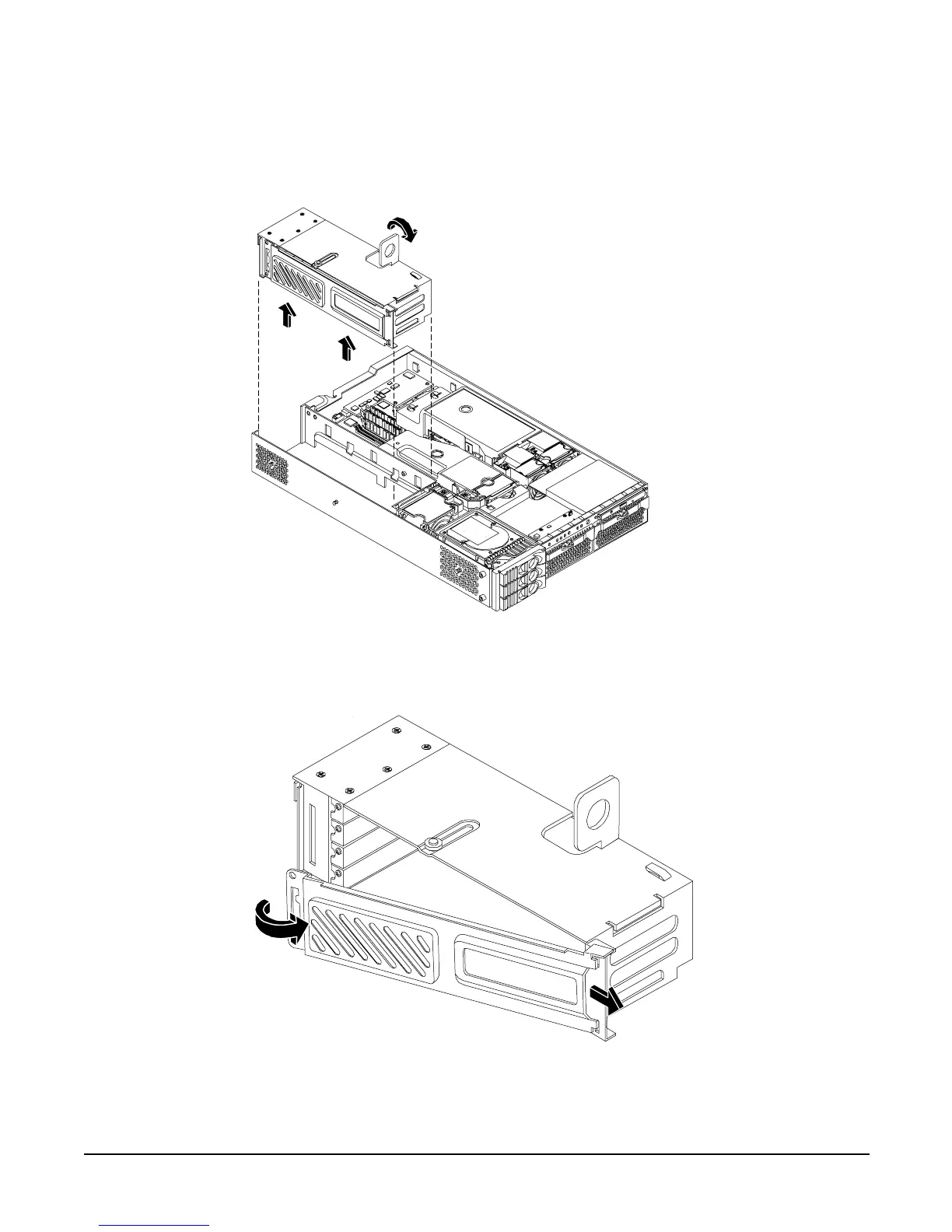

Figure 4-39 Removing the PCI Cage
Step 4. Grasp the PCI cage cover and slide it away from the bulkhead end of the cage, then lift the cover off.
See Figure 4-40 for more information.
Figure 4-40 Removing the PCI Cage Cover
Step 5. Unscrew the bulkhead screw that holds the accessory card in place.
Step 6. The PCI cards are now accessible for removal and replacement.
Front of server
