Removing and Replacing Components
Removing and Replacing System Top Metal Cover and Bezels
Chapter 4
51

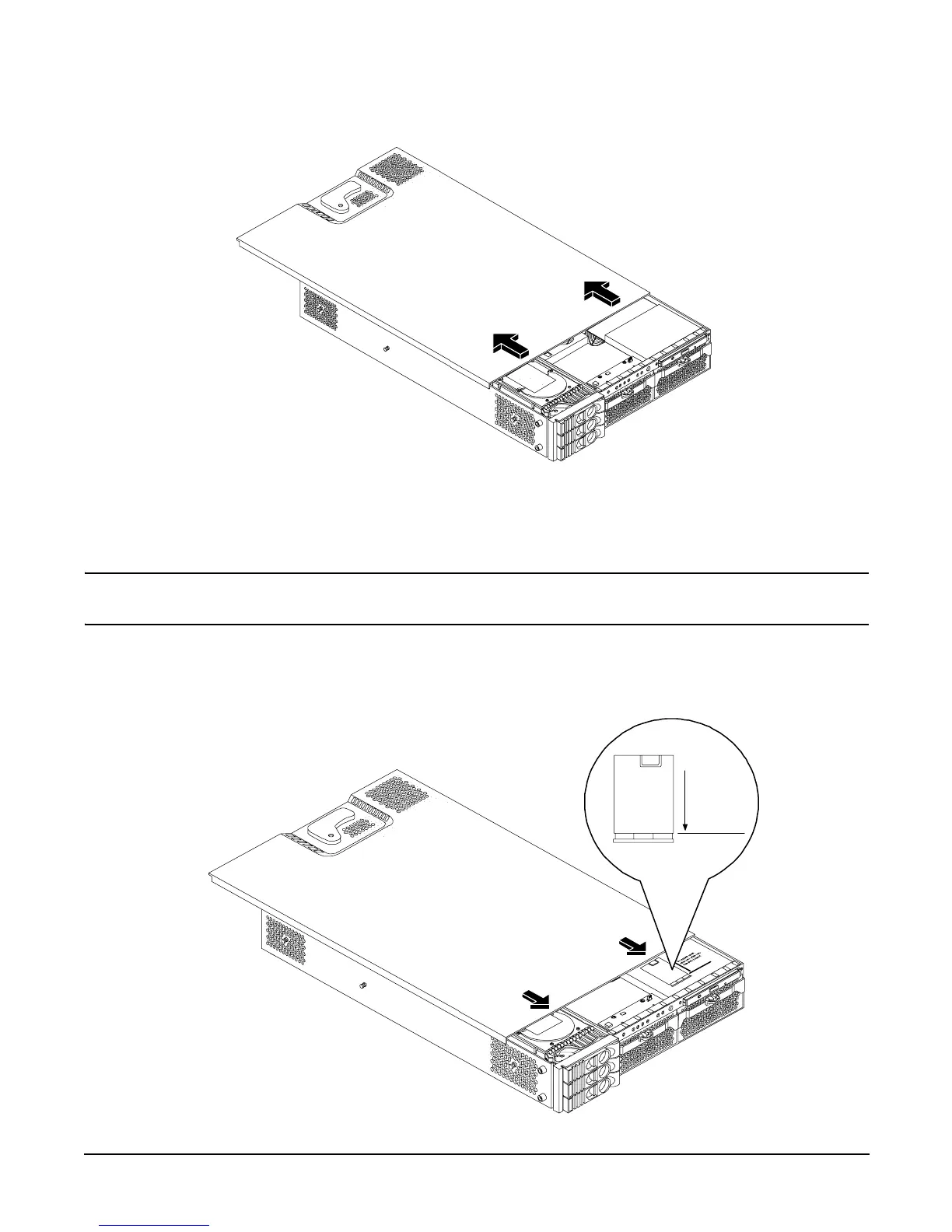

Figure 4-4 Removing and Replacing the Top Metal Cover
Step 3. Lift the top metal cover off the server chassis.
Replacing the Top Metal Cover
CAUTION Secure any wires or cables in your server so they do not get cut or interfere with the
replacement of the top metal cover.
Step 1. Align the front edge of the top metal cover with the alignment mark on the optical drive bay. See
Figure 4-5 for more information.
Figure 4-5 Aligning the Top Metal Cover
Front of server
To replace cover,
align front edge here
then slide forward
Front of server
