HP Integrity rx2620 - Location of Internal Components and Connectors

Removing and Replacing Components
Location of Internal Components and Connectors
Chapter 4
47
Location of Internal Components and Connectors
Figure 4-1 and Table 4-1 show the location of the internal server components.

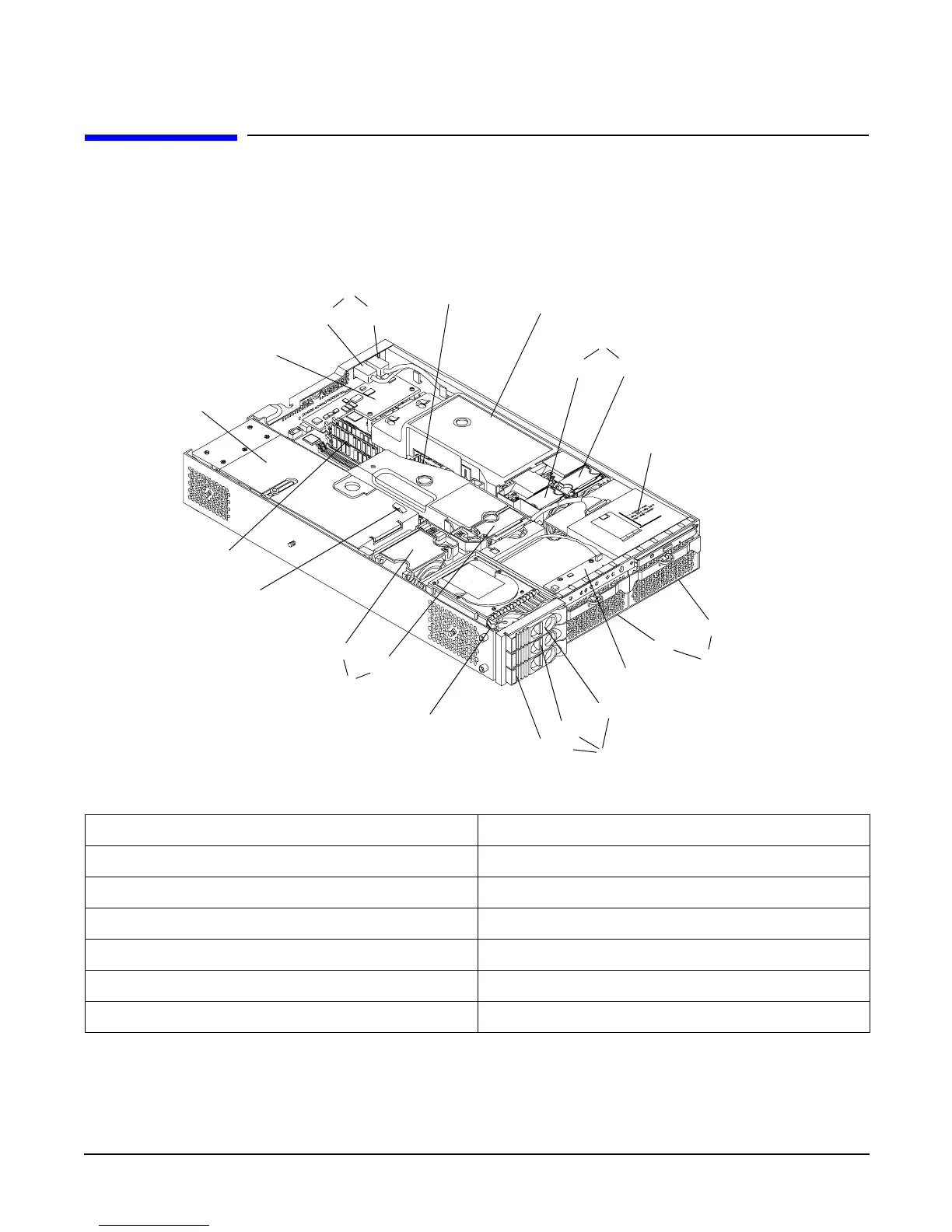

Figure 4-1 Internal Physical Layout
Table 4-1 Component Locations
1 Power receptacles (PWR 1 right, PWR 2 left) 8 Hot-pluggable hard drives (up to 3)
2 Memory airflow guide 9 Hard disk lock
3 Processor airflow guide 10 System fans (fan 2 - memory, fan 3 - I/O cage)
4 System fans (fan 1A - right, fan 1B - left) 11 Intrusion switch
5 Slimline optical drive 12 Memory sockets
6 Power supplies (PSU1 center; PSU2 to the right) 13 PCI cage
7 Status panel board 14 Management controller (Optional)
1
2
3
4
5
7
8
9
10
14
13
12
11
6
Fan 1A
Fan 1B
PS 2
Drive 0
Drive 1
Drive 2
Pwr 2
Pwr 1
PS 1
Fan 3
Fan 2
Front of server
