Removing and Replacing Components
Removing and Replacing Internal Components
Chapter 4
102

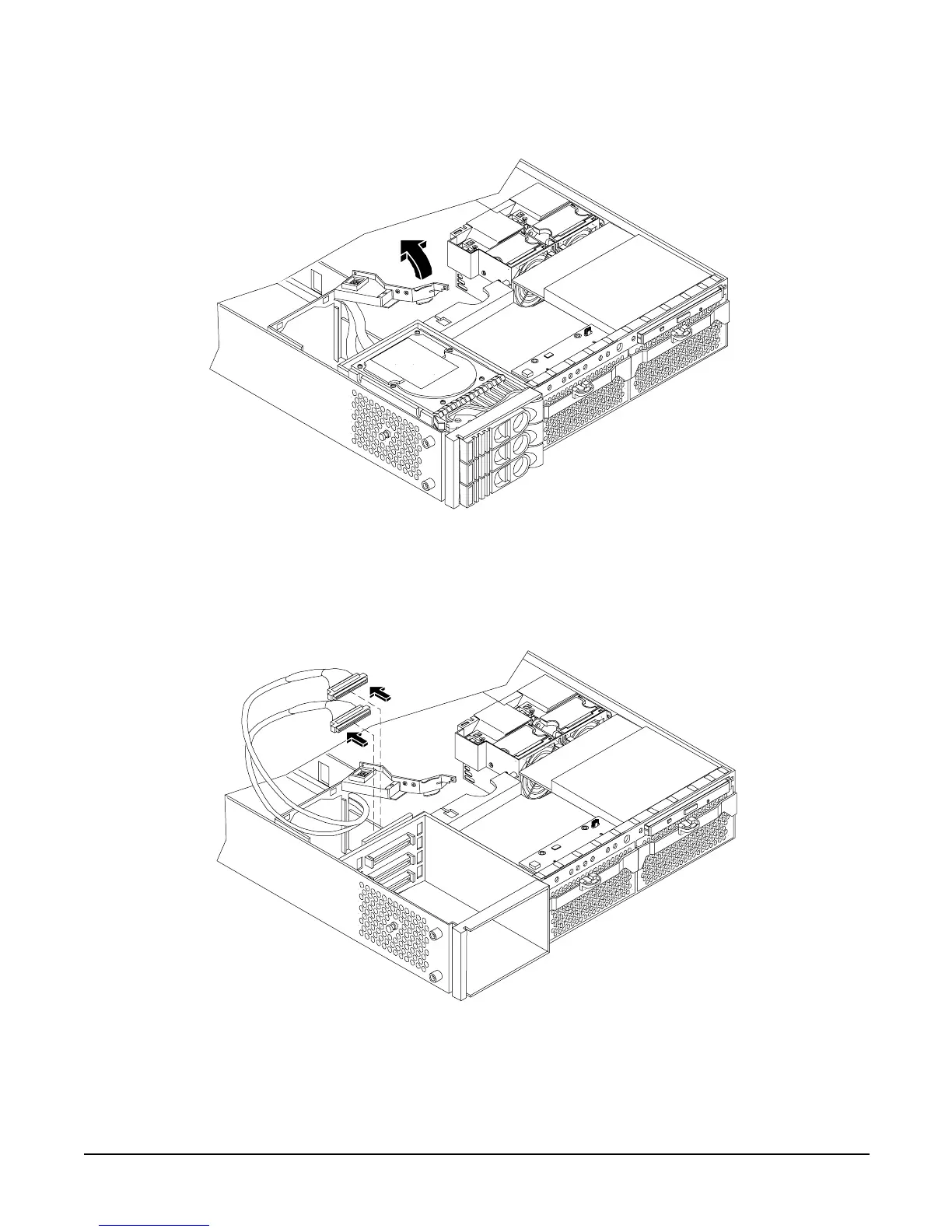

Figure 4-63 Open the Fan Power Bridge
Step 4. Remove any installed hard disk drives.
Step 5. Disconnect the SCSI cables and unscrew the backplane mounting screws. See Figure 4-64 and
Figure 4-65 for more information.
Figure 4-64 Disconnect SCSI Cables
Front of server
Front of server
