Removing and Replacing Components
Removing and Replacing Internal Components
Chapter 4
86

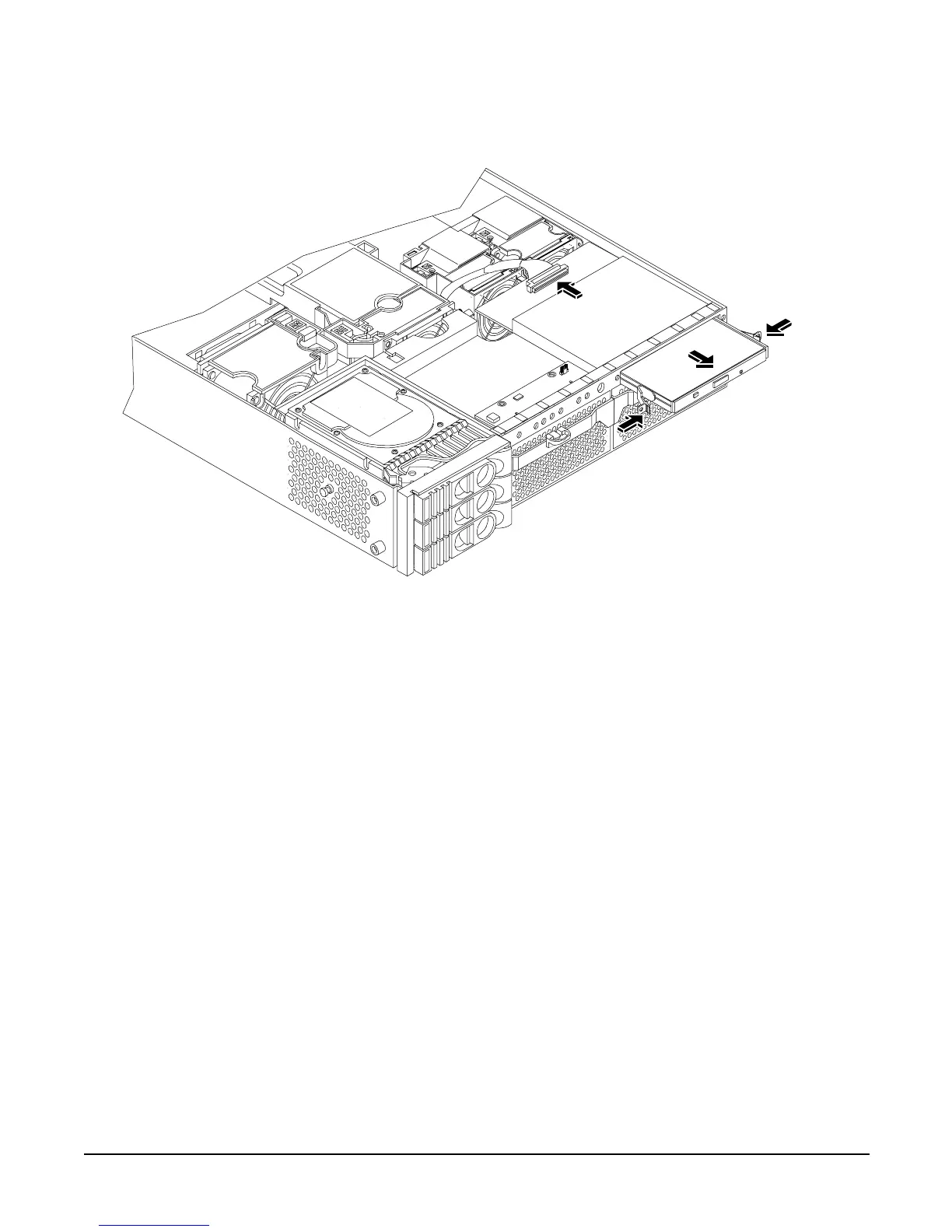

Figure 4-45 Removable Media Drive Removal/Replacement
Replacing a Removable Media Drive
To replace the removable DVD drive, perform the following steps:
Step 1. If a removable media drive has not previously been installed in the server, the drive slot is covered
with a DVD drive filler. Remove the DVD drive filler.
Step 2. Slide the replacement drive into the drive bay until it stops sliding and the retaining clips on both
sides of the drive snap into place.
Step 3. Connect the IDE cable on the back of the drive.
Step 4. Replace the top metal cover.
Step 5. Reconnect the power and external cables and turn on the server.
Step 6. Verify the drive replacement by using the utilities identified in Appendix C, “Utilities,” on page 167.
• Load removable media and access to verify operation.
• Use the iLO MP commands to verify operation.
• Use diagnostics provided by the ODE to exercise the module replaced.
Front of server
