Removing and Replacing Components
Removing and Replacing Internal Components
Chapter 4
101

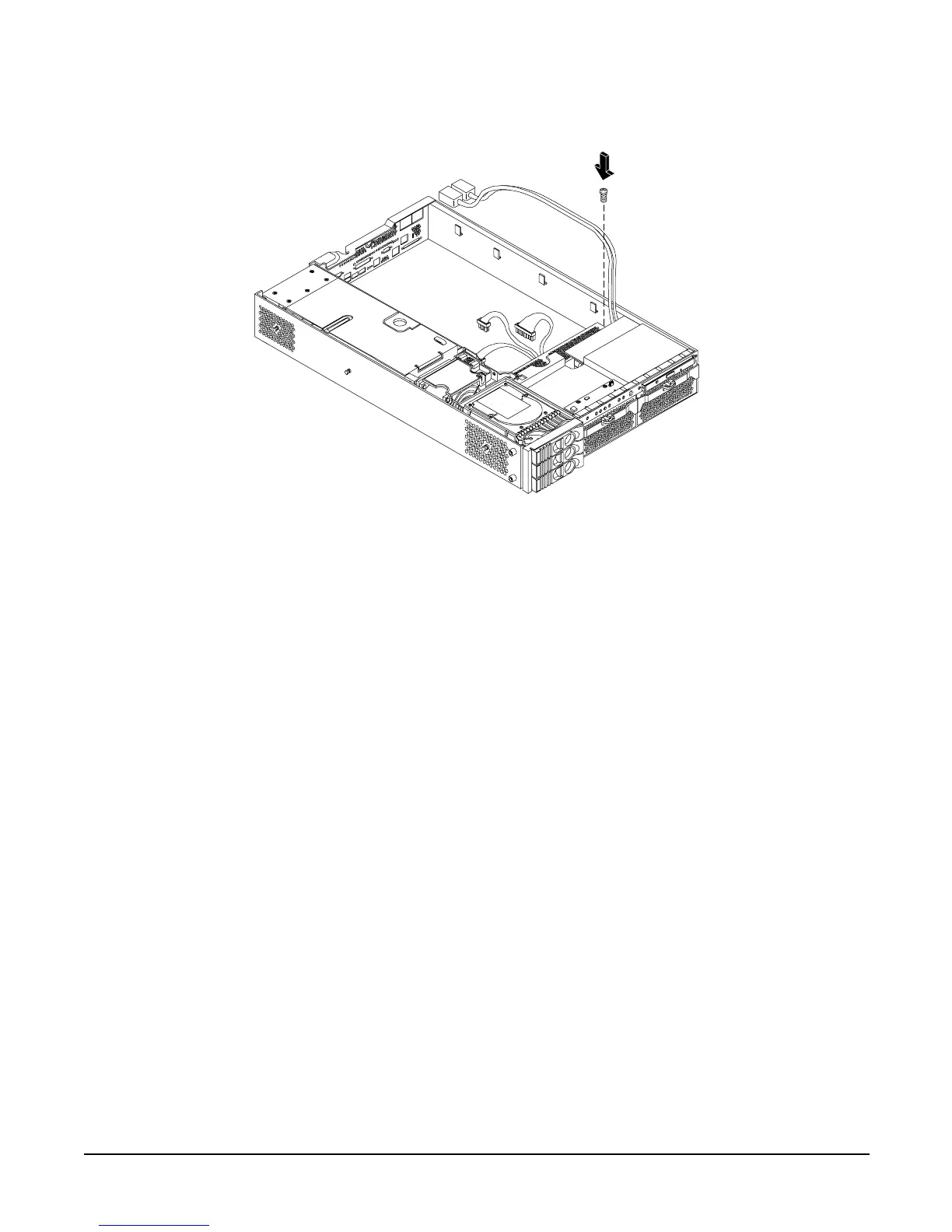

Figure 4-62 Securing the Power Supply Interface Module and Cables
Step 3. Replace the system board. See “Removing and Replacing the System Board” on page 92.
Step 4. Replace the power supply (or supplies).
Step 5. Replace the top metal cover, and reconnect all of the power and external cables.
Step 6. Verify the PSI replacement by using the utilities identified in Appendix C, “Utilities,” on page 167.
• Use the iLO MP commands to verify operation.
Removing and Replacing the Hard Disk Drive (SCSI) Backplane
Removing the Hard Drive Disk SCSI Backplane
Step 1. Turn off the server, disconnect all power and external cables, and remove the top metal cover.
Step 2. Lift up on the PCI cage release lever and the back edge of the PCI cage and lift the PCI cage out of
the server.
Step 3. Lift up on the fan power bridge and disconnect the backplane power cable. See Figure 4-63 for more
information.
Front of server
