Removing and Replacing Components
Removing and Replacing
Internal Components
Chapter 4
99

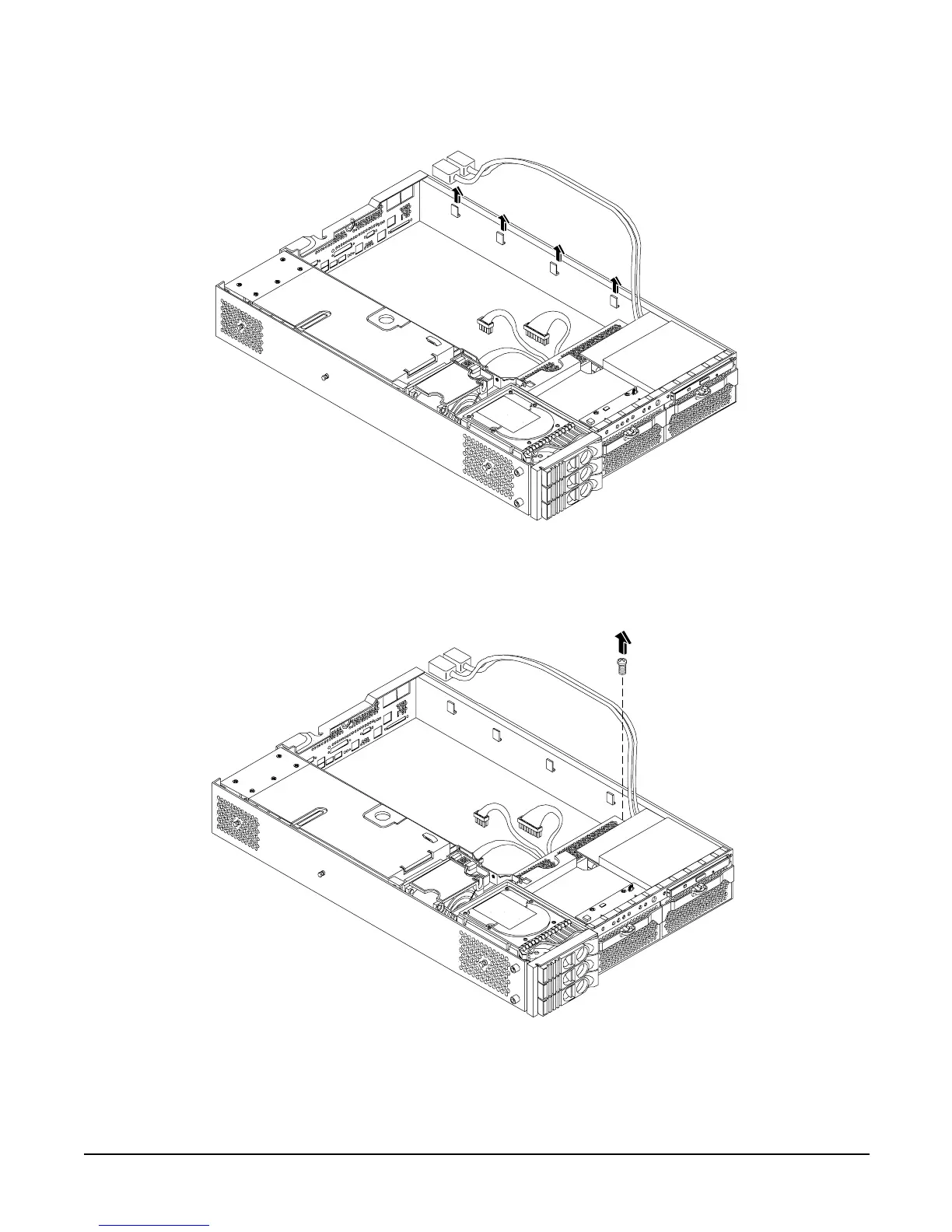

Figure
4-58 P
ower Cables and Holding Clips
Step 5.
Unscrew the PSI mounting screw and remove the PS
I module from the server
. See Figure
4-59 and
Figure
4-60 for more information.
Figure
4-59 Remove the Mounting Screw
Front of s
erver
Front of server
