Removing and Replacing Components
Removing and Replacing Internal Components
Chapter 4
104

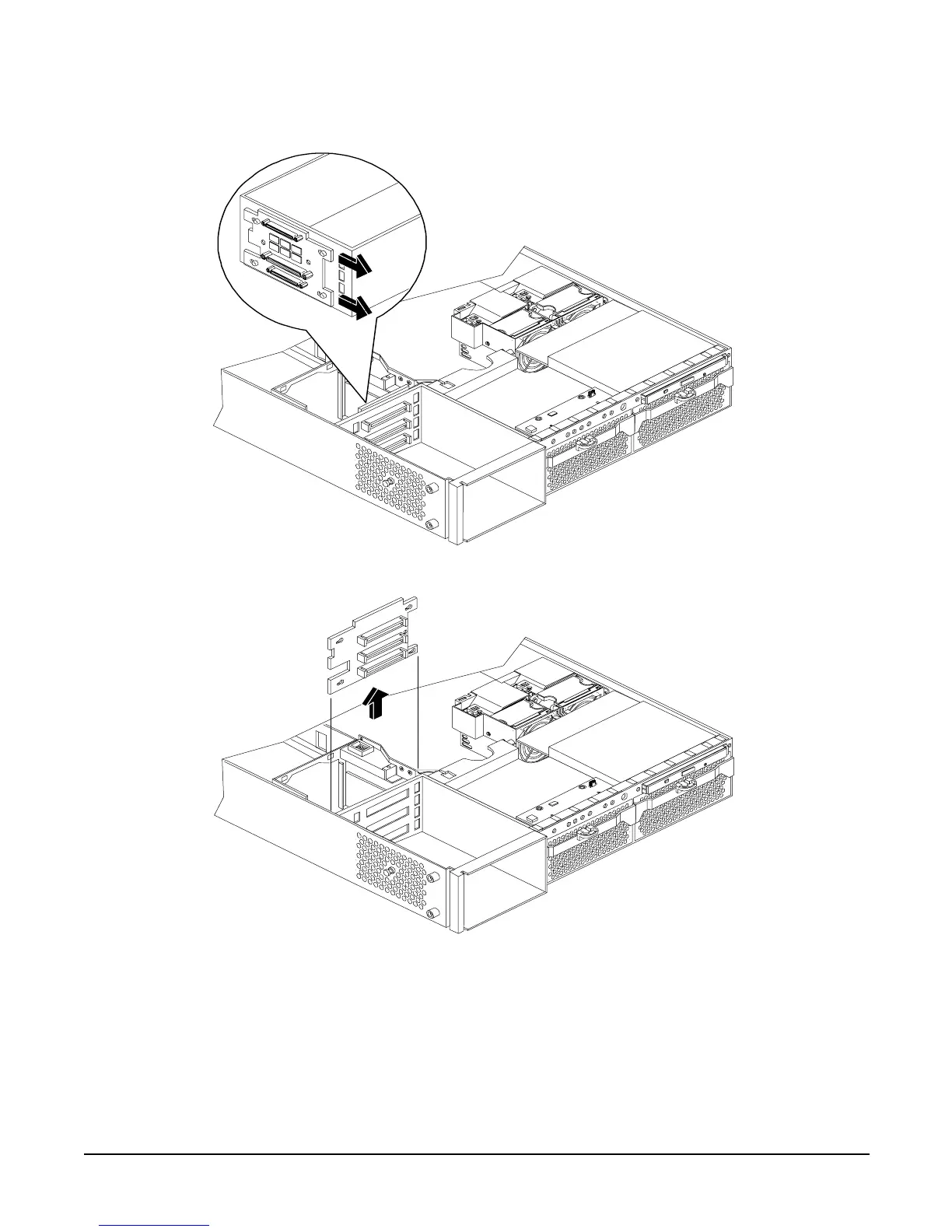

Figure 4-66 Remove the SCSI Backplane
Figure 4-67 Remove the SCSI Backplane from Chassis
Replacing the Hard Disk Drive SCSI Backplane
Step 1. Insert the hard drive backplane onto its four chassis standoffs and slide it to the left as you face it.
This locks the hard drive backplane in place.
Step 2. Screw in the two backplane mounting screws and connect the two SCSI cables.
Step 3. Replace any removed hard disk drives.
Front of server
Front of server
