HP Integrity rx2620 - Figure 2-9 Ilo MP LAN Leds; Management Processor LAN Leds (Optional); Table 2-9 Ilo MP LAN Leds

Controls, Ports, and LEDs
Rear Panel
Chapter 2
40
Management Processor LAN LEDs (Optional)
The LAN port of the optional integrated Lights Out (iLO) Management Processor (MP) uses an RJ-45 type
connector. This connector has four LEDs that signal status and activity. The iLO MP is required for Proactive
24 or Critical Service support. See Figure 2-9 and Table 2-9 for the location and description of the MP LAN
LEDs.

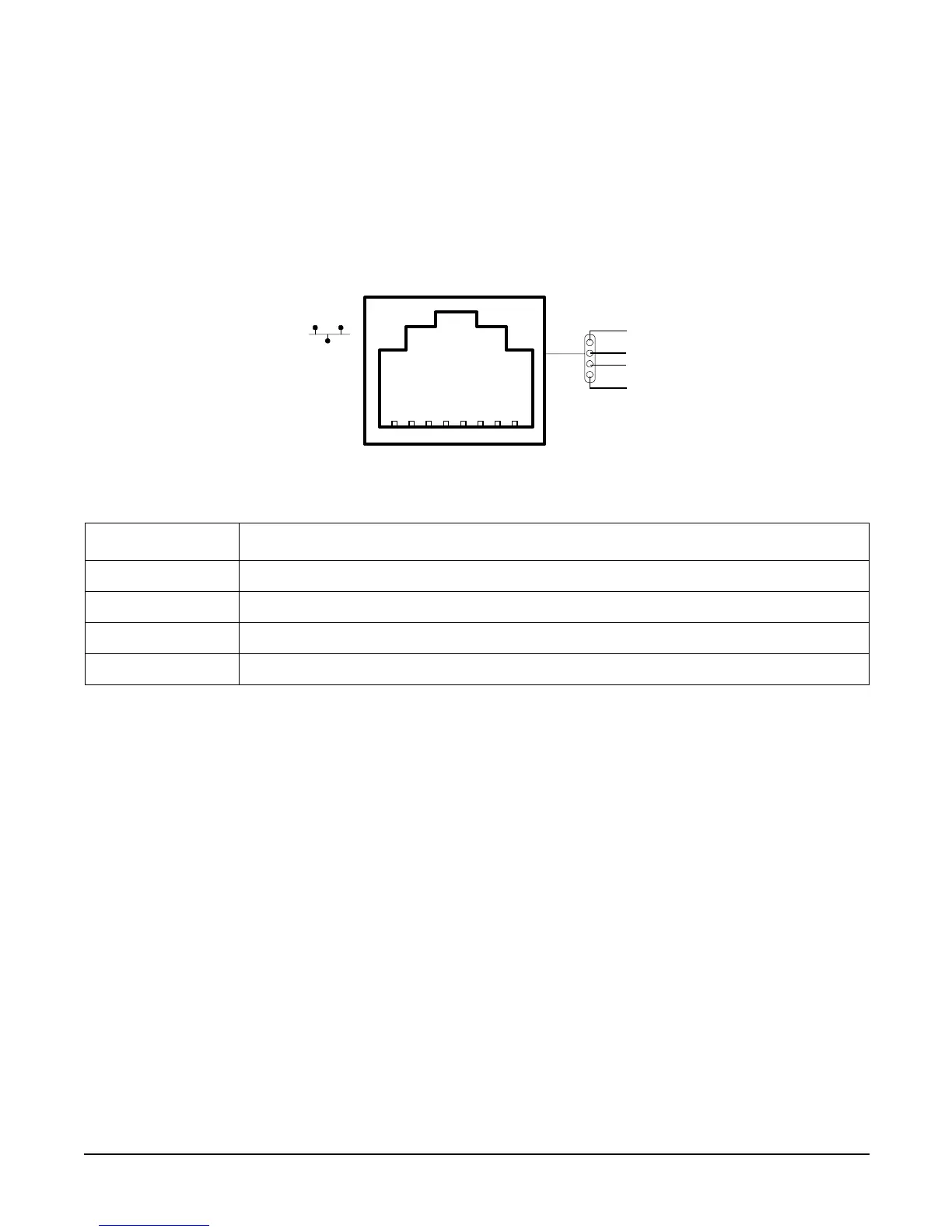

Figure 2-9 iLO MP LAN LEDs
Table 2-9 iLO MP LAN LEDs
LED Description
Self-test Yellow—iLO MP is running self-test or error detected
10 BT Green—10 BT link established, blinking green—10 BT link activity, off—no link
100 BT Green—100 BT link established, blinking green—100 BT link activity, off—no link
Standby Power Green—Standby power on, off—standby power off
Self-test
10BT
100BT
Standby
Power
