Removing and Replacing Components
Removing and Replacing System Top Metal Cover and Bezels
Chapter 4
50

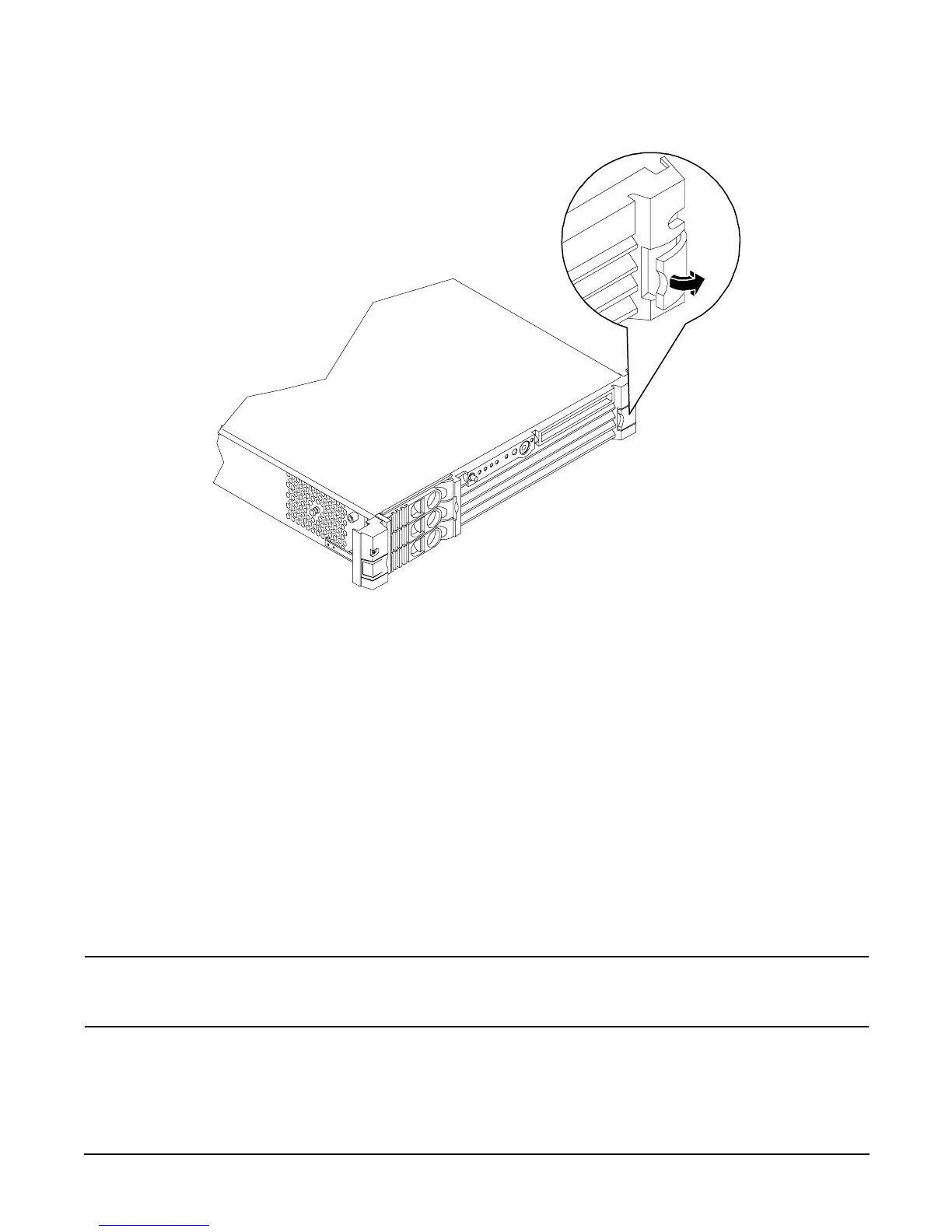

Figure 4-3 Release the Rack Latches
Step 3. Slide the server out of the rack until the guide-rail release clips are visible.
Inserting the Server into the Rack
To insert the server into the rack, perform the following step:
Step 1. Press the rail clips on either side of the server inward and push the server into the rack until it
stops.
Step 2. Verify that the rack latches are closed.
Removing and Replacing the Top Metal Cover
The following procedures describe how to remove and replace the top metal cover.
Removing the Top Metal Cover
Step 1. Turn off the server and disconnect the power cable and all other cables from the back of the server.
NOTE If you are removing only a hot-swappable fan, you can leave the server on and the
power cables connected. However, you must replace the top metal cover within 30
minutes, or the server will shut down.
Step 2. Ensure the top metal cover lock keyswitch is in the unlocked position. Rotate the blue release lever
toward the back of the server and slide the cover toward the back of the server. See Figure 4-4 for
more information.
Front of server
