Removing and Replacing Components
Removing and Replacing System Top Metal Cover and Bezels
Chapter 4
52
Step 2. Grasp the blue release lever and slide the top metal cover toward the front of the server until the
lever snaps into place. See Figure 4-6 for more information.

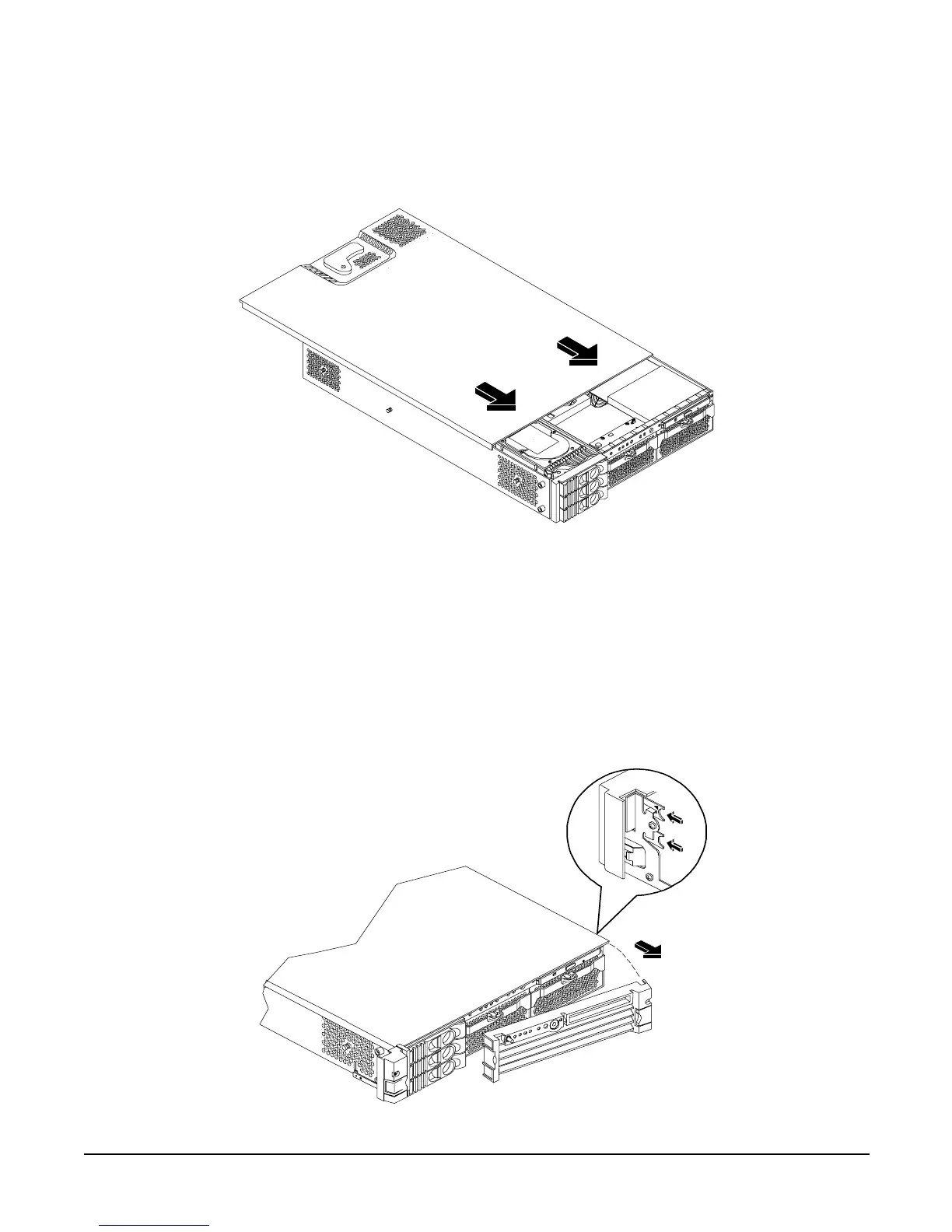

Figure 4-6 Closing the Top Metal Cover
Step 3. Slide the server into the rack enclosure and connect the power cables.
Removing and Replacing the Front Bezel
You must remove the front bezel from the chassis to remove or replace the power supplies or the optical drive.
Removing the Front Bezel
Step 1. Press in on the retaining clips located on the right-side of the front panel. See Figure 4-7 for more
information.
Figure 4-7 Front Bezel Retaining Clip
Front of server
Front of server
