HP Integrity rx2620 - Figure 4-35 Locking the Processor Module in Place; Figure 4-36 Slide the Sequencing Retainer Plate

Removing and Replacing Components
Removing and Replacing Internal Components
Chapter 4
76
CAUTION Do not press the processor module into the socket. When properly aligned, the
processor pins seat into the ZIF socket, no additional pressure is required.
Step 6. Use the special processor tool shipped with your replacement processor module to lock the
processor module in place on the system board. To do this, insert the special processor tool through
the turbo fan blades into the ZIF socket. Rotate the tool clockwise 180 degrees. See Figure 4-35 for
more information.

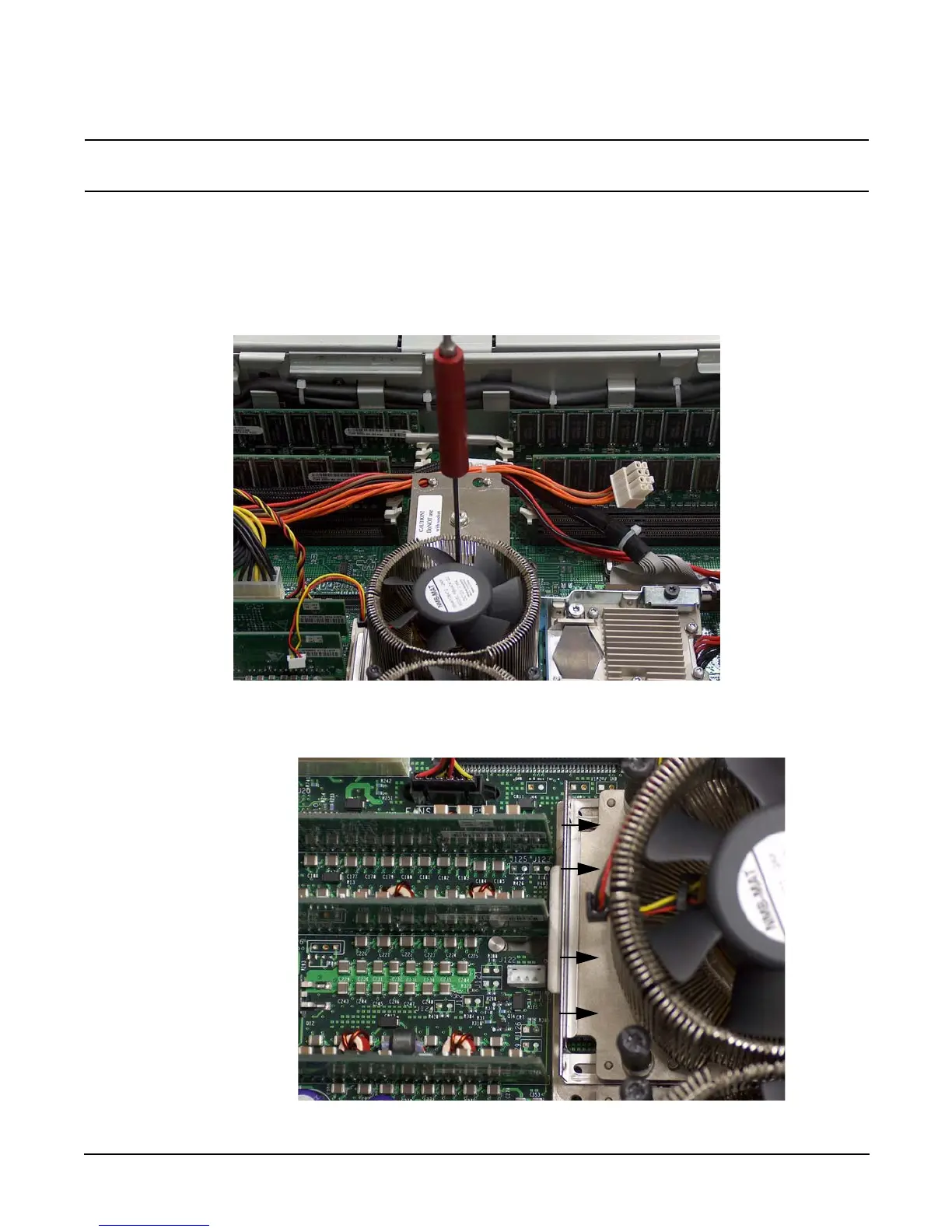

Figure 4-35 Locking the Processor Module in Place
Step 7. Slide the sequencing retainer plate toward the rear of the server. See Figure 4-36.
Figure 4-36 Slide the Sequencing Retainer Plate
Front of server
Front of server
