HP Integrity rx2620 - Figure 4-15 Unlocking the Disk Drive (if Necessary); Figure 4-16 Releasing the Disk Drive

Removing and Replacing Components
Removing and Replacing Hot-Swap and Hot-Plug Devices
Chapter 4
59

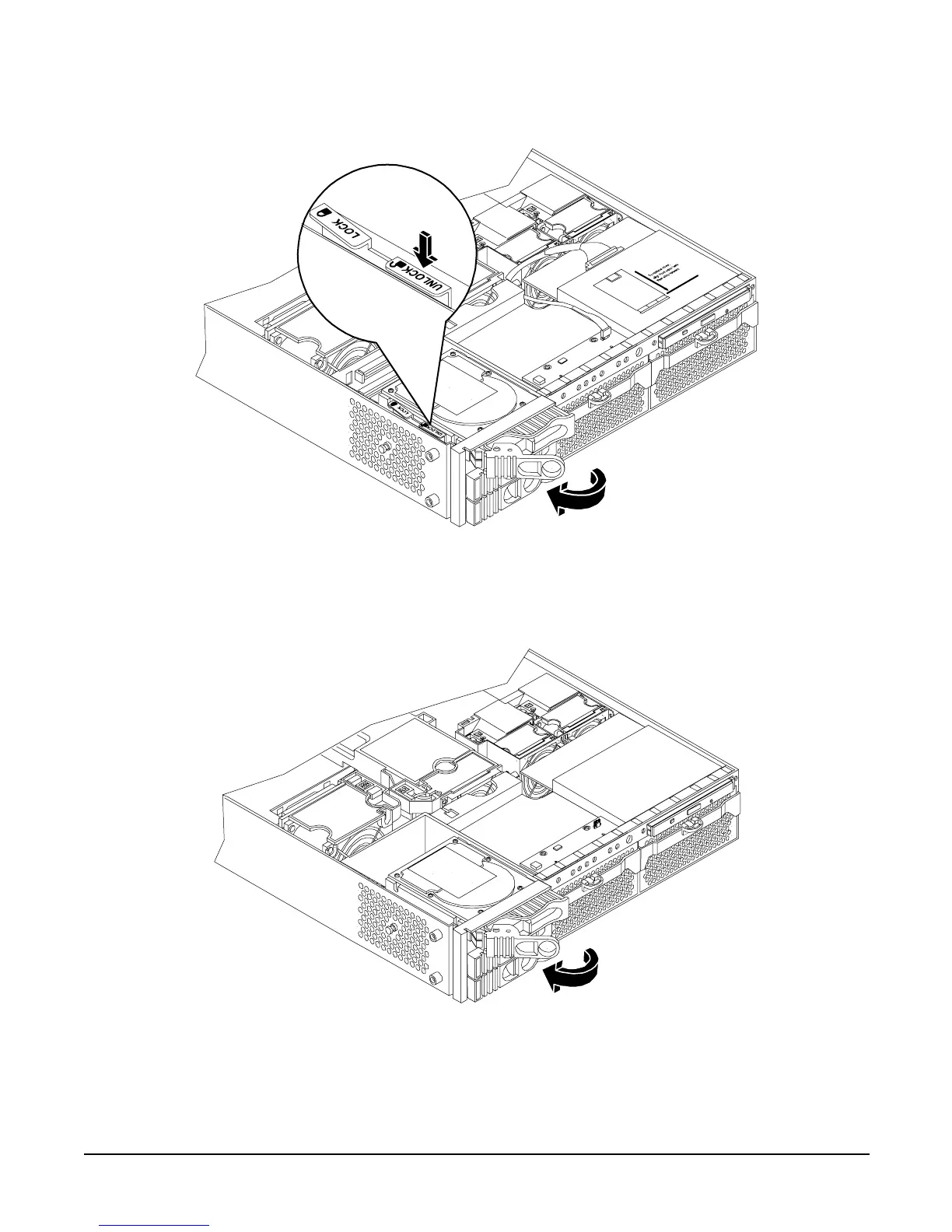

Figure 4-15 Unlocking the Disk Drive (if necessary)
Step 3. Squeeze inward on the colored release clip on the hard drive release lever. See Figure 4-16 for more
information.
Figure 4-16 Releasing the Disk Drive
Front of server
Front of server
