Controls, Ports, and LEDs
Rear Panel
Chapter 2
39
LAN Gb B Connector
The rear panel 10/100/1000 base-T ethernet LAN Gb B connector has the following status and activity LEDs.
See Figure 2-8 and Table 2-8 for the location and description of the LAN Gb B LEDs.

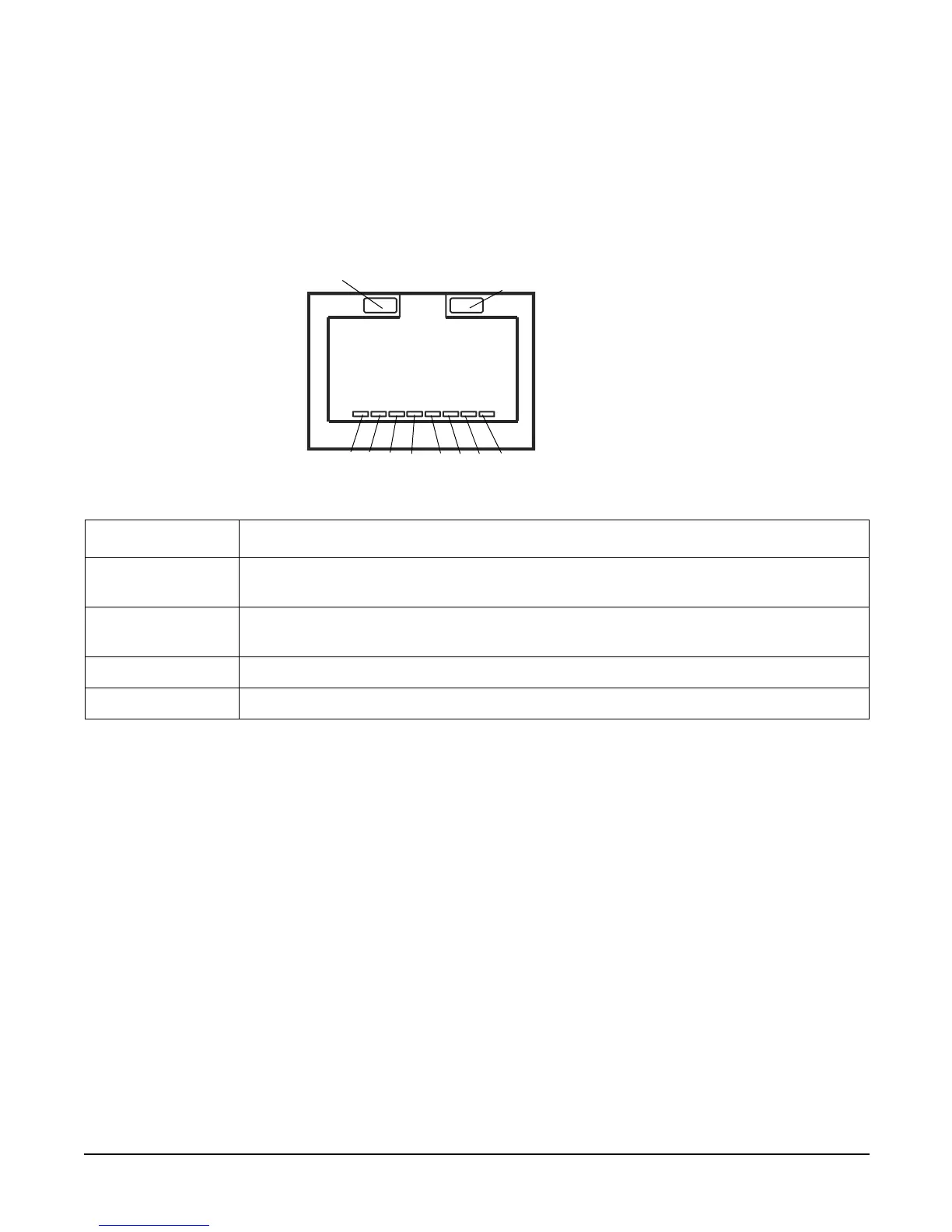

Figure 2-8 10/100/1000 base-T ethernet Gb LAN B Connector LEDs
Table 2-8 10/100/1000 base-T ethernet Gb LAN B Connector LEDs
LED Description
Speed (upper left) Yellow—the 1000 MHz with ethernet protocol and twisted-pair wiring is enabled,
off—no link
Speed (upper left) Green—the 100 MHz with ethernet protocol and twisted-pair wiring is enabled,
off—no link
Link (upper right) Green—link
Link (upper right) Off—No link
Link (Green)
Speed (Yellow/Green)
1234 5678
