HP Integrity rx2620 - Figure 4-43 Removing the PCI Backplane; Figure 4-44 Replacing the PCI Backplane

Removing and Replacing Components
Removing and Replacing Internal Components
Chapter 4
84

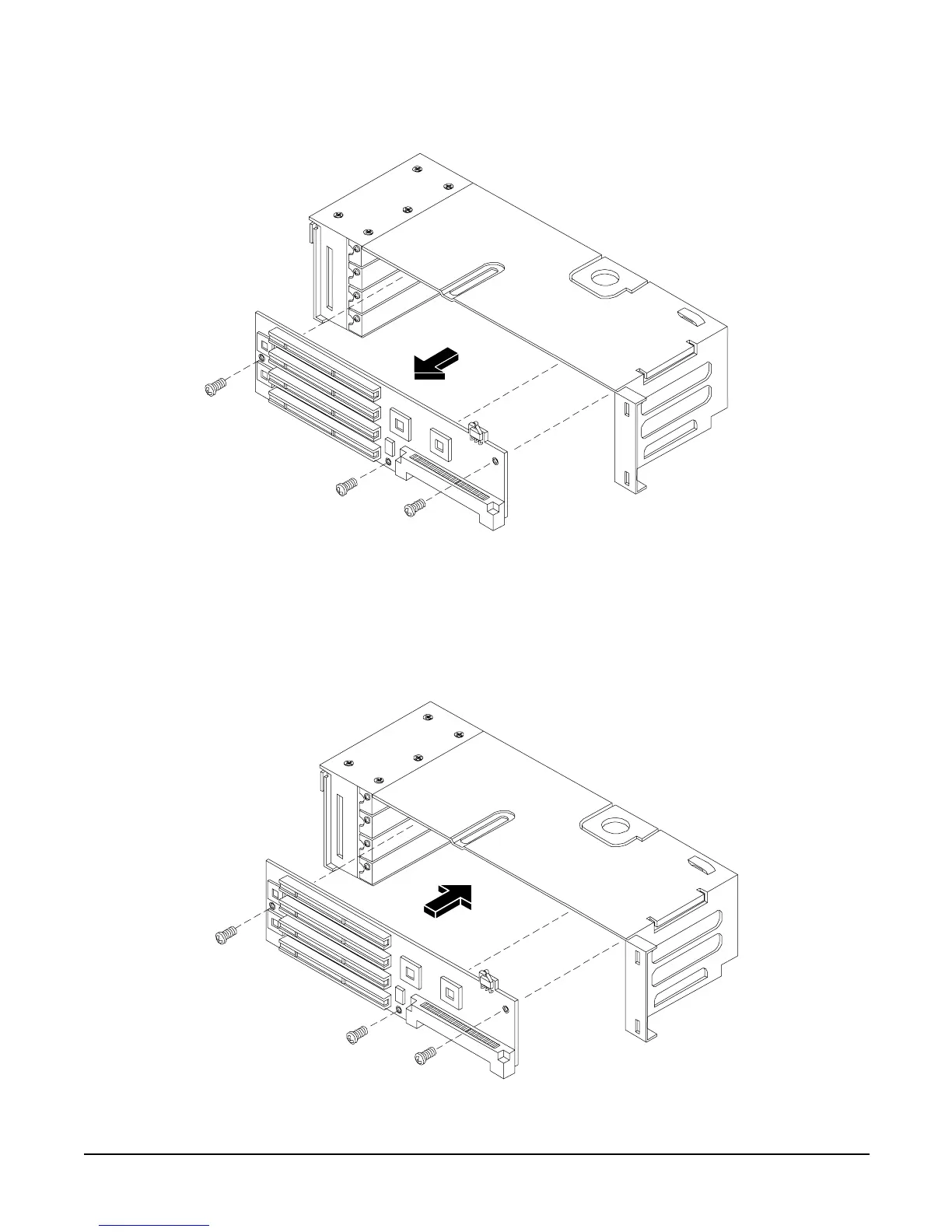

Figure 4-43 Removing the PCI Backplane
Replacing the PCI Backplane
Step 1. Place the backplane in the cage by aligning the cage standoffs with the holes on the backplane and
slide it into place.
Step 2. Secure the PCI backplane by screwing in its mounting screws.
Figure 4-44 Replacing the PCI Backplane
Step 3. Replace any accessory and graphics cards.
