Removing and Replacing the LED Status Panel
The LED status panel card contains the server LEDs and the diagnostic LEDs.
CAUTION Some server settings are saved to the LED status panel. If you are replacing both the LED
status panel and the system board, they must be replaced one at a time to avoid loss of server
settings. First replace one component, then turn on the server and boot to the EFI prompt.
After confirming that the first component has been replaced successfully, shut down the server
and replace the second component.
Removing the LED Status Panel
Step 1. Turn off the server, disconnect all power cables, and remove the top metal cover.
Step 2. Disconnect the LED status panel’s controller cable.
Step 3. Unscrew the two LED status panel mounting screws and remove the panel. See Figure 4-49 for
more information.

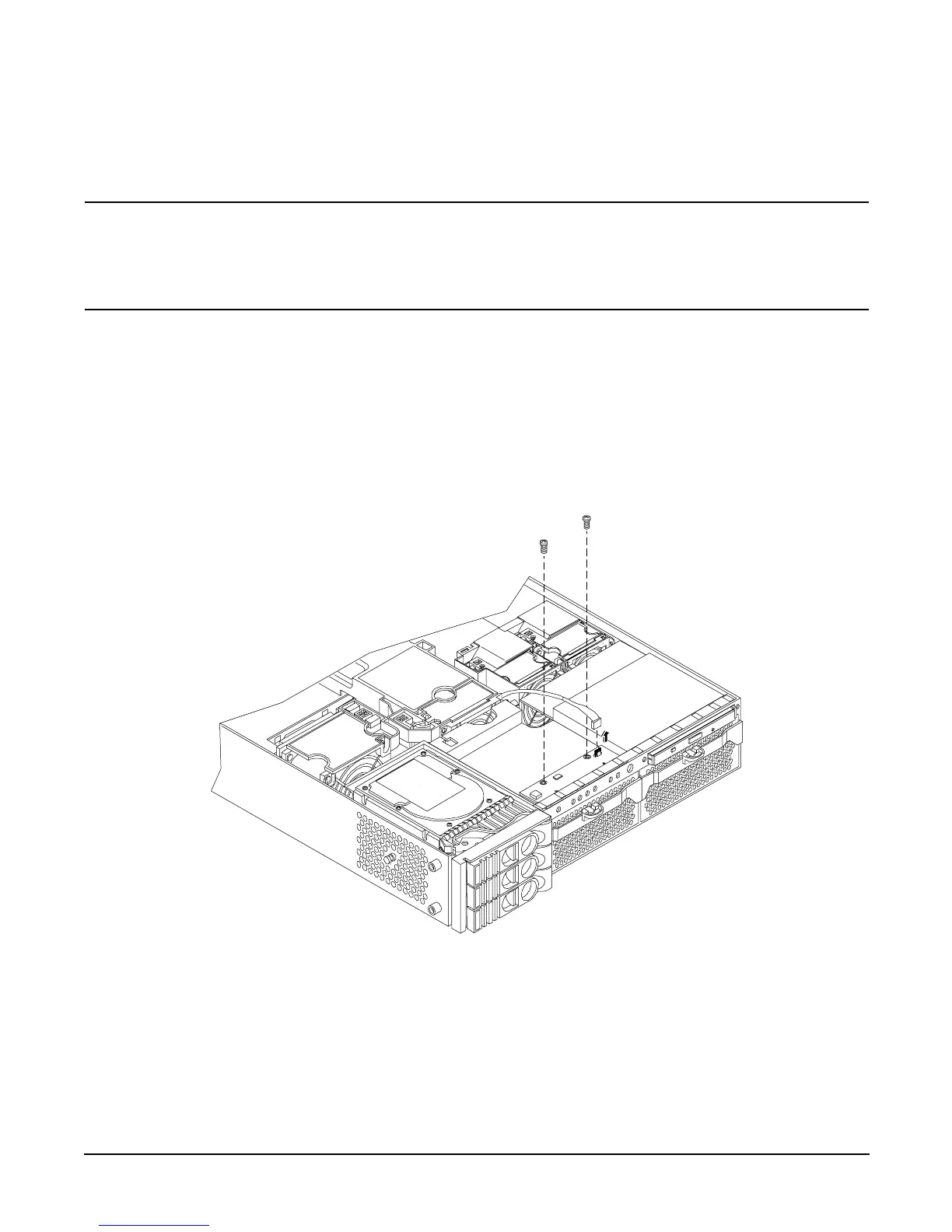

Figure 4-49 Removing the LED Status Panel
Front of server
