Removing and Replacing iLO MP Hardware
The iLO MP card is an independent support system for the server. It provides a way to connect to a server and
perform administration or monitoring tasks for the server hardware.
Removing iLO MP Hardware
Step 1. Record the network settings from your iLO MP hardware before beginning this task.
Step 2. Turn off the server, disconnect all power and external cables and remove the top metal cover.
Step 3. Unscrew the two mounting screws that connect the iLO MP hardware to the internal chassis post
as shown in Figure 4-46.

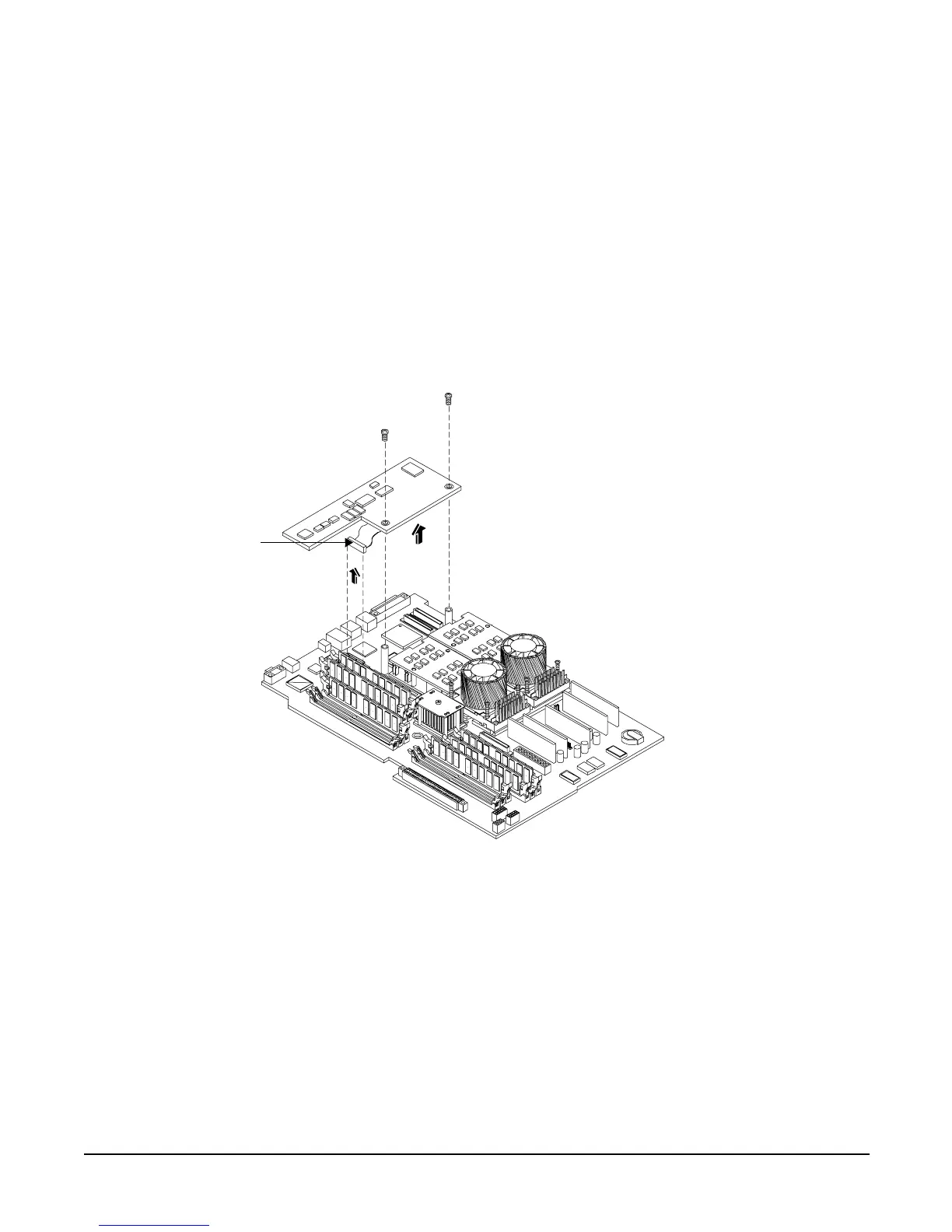

Figure 4-46 Removing the iLO MP Card
Step 4. Unscrew the two external mounting screws that are located on both sides of the 25-pin serial
connector as shown in Figure 4-47.
Step 5. Disconnect the iLO MP hardware connector.
Step 6. Remove the iLO MP card from the server by grasping it by its edges.
Front of server
iLO MP Hardware
connector
