Hot-Plug Disk Drive Indicators
The hot-plug disk drives have two LEDs per drive, as described below. see Figure 2-3 and Table 2-3 for the
location and description of the hard disk drive LEDs.
• Status LED—The Drive Status LED is not used in the HP Integrity rx2620 server.
• Activity LED—The Drive Activity LED is green and indicates disk drive activity. This LED is directly
controlled by the disk drive and turns on when a drive is accessed.

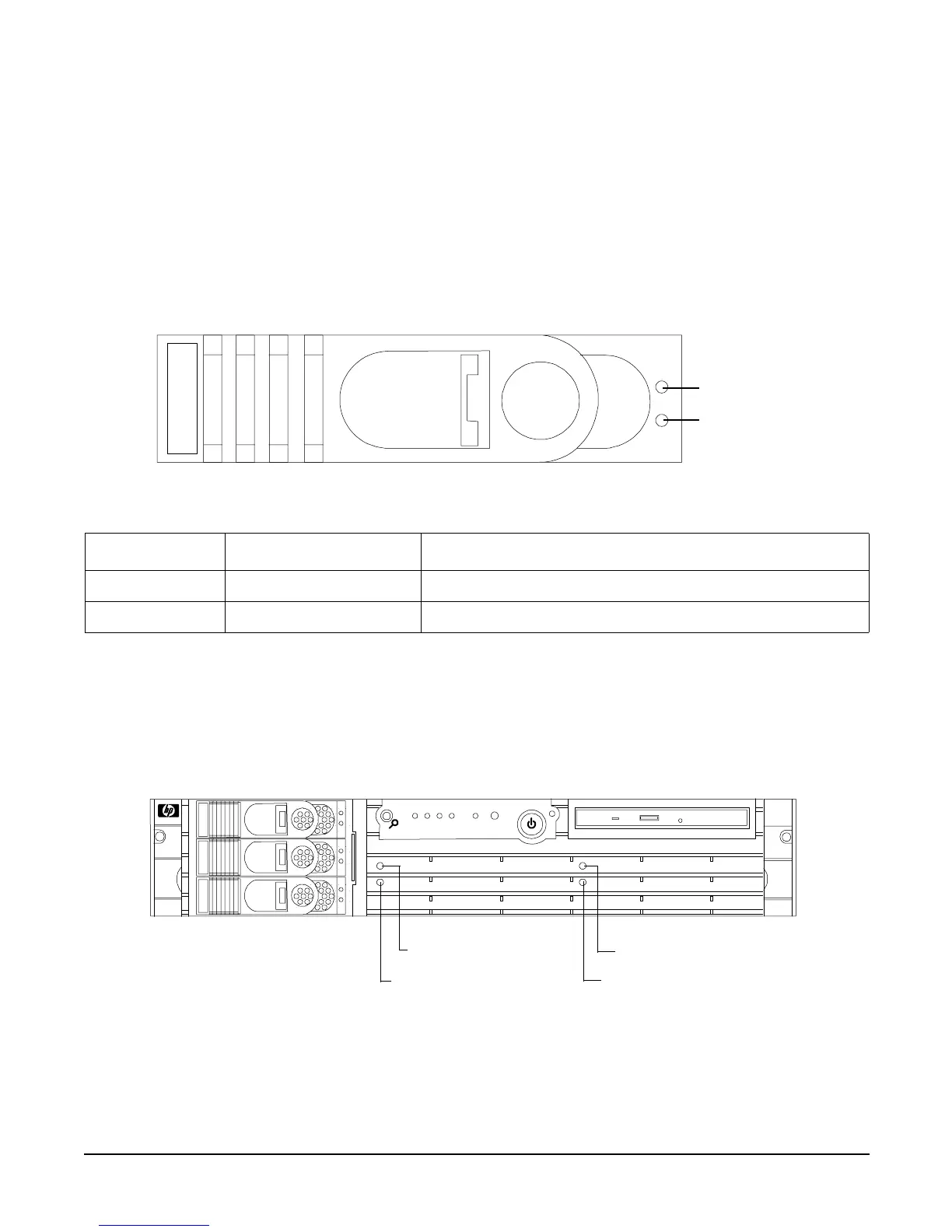

Figure 2-3 Hot-Plug Disk Drive LED Indicators
Power Supply LEDs
The HP Integrity rx2620 server is typically delivered with a single power supply (PS 1). An additional power
supply (PS 2) may be installed for redundant (n+1) power capability. See Figure 2-4 and Table 2-4 for the
location and description of the power supply LEDs.
Figure 2-4 Power Supply LEDs
Table 2-3 Hard Disk Drive LED Definitions
LED Activity Description
Status LED Not used Not used
Activity LED Flashing green Drive access under hard drive control
Activity LED
Status LED
(not used)
AC Present LED (upper)
PSU On LED (lower)
(Visible behind bezel)
PS 1 LEDs
PS 2 LEDs
AC Present LED (upper)
PSU On LED (lower)
