2. Disconnect the data (1), power (2) cables from the drive. The connector colors might be different
than shown in the following figure.

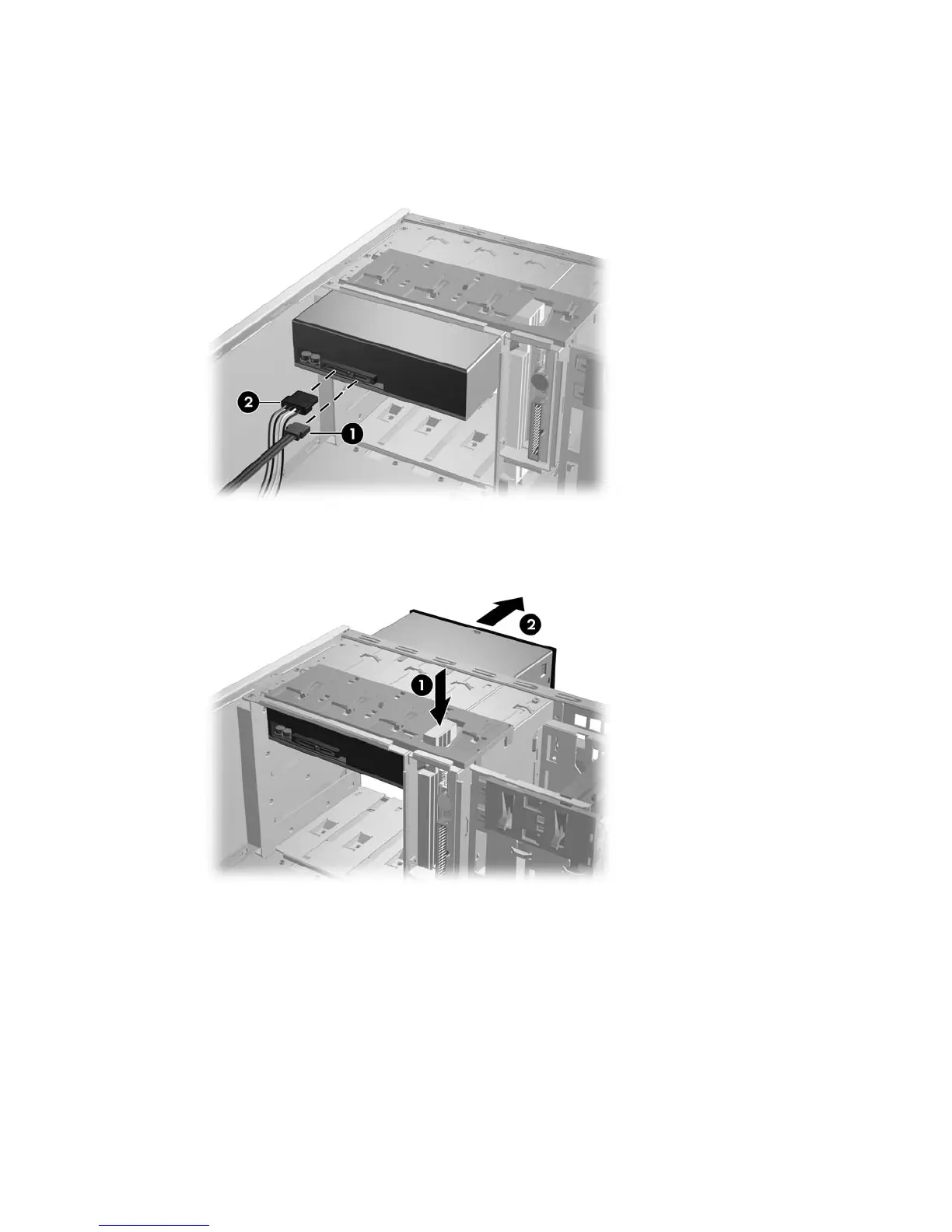

Figure 4-41 Disconnecting the optical drive cables
3. Press down on the yellow drive-lock release lever (1) and gently slide the drive out of the chassis
(2).
Figure 4-42 Removing the optical drive from chassis
ENWW Removing and replacing components 93
